DSP3036W 360W Waterproof Digital Column Speaker

Features:

● Acoustically simulate the columns of different shapes, up to 6 sound beams, vertical sound direction adjustable
● Active sound column with digital signal processor (DSP)
● digital power amplifier built in, rated 240W/360W.
● Built-in 100v/70v transformer
● Volume, tone and other parameters of the sound column adjustable
● Waterproof speaker unit and overall stamping aluminum housing design, suitable for outdoor use
● With DSP-3000 regulator for easy configuration
● Compact size, easy installation and high electro acoustic sensitivity

  • Introduction
  • Specification
  • Connection

Waterproof speaker unit and overall stamping aluminum housing design, suitable for outdoor use

With DSP-3000 regulator for easy configuration

Compact size, easy installation and high elector acoustic sensitivity

Description:

DSP3025/DSP3036 is waterproof phased-array digital sound column consists of 8pcs/12pcs of 5” speaker units.

By applying the electronic and digital signal processing (DSP) technologies, it can simulate the directivity from different shapes of sound columns, while the inherent performances of the sound column will not be affected, e.g. rated power, range of effective frequency response and max sound pressure level. With DSP technologies, we may operate from the remote controller to change the directivity of speaker system at some extent.

This digital column speaker is suitable for loud speaking in a hall where the building acoustics is poor, especially for the hardware of the loudspeaker system in sports venues (where the volume is large, the building acoustics is poor, the reverberation time is long and the sound is muddy).

Item


DSP3025

DSP3026

Frequency amplifier system

Rated power RMS (load 8Ω)

240W

360W

Line input sensitivity

300(-10dB)/500(-6dB)/1000(0dB)mV

Constant voltage input sensitivity

30(-10dB)/50(-6dB)/100(0dB)V

Signal to noise ratio

>81dB

Degree of distortion

<0.5%

Frequency response

20Hz-20kHz(±3dB)

Graphic equalizer frequency point

31/62/125/250/500/1000/2000/4000/8000/16000 Hz

Equalizer gain amplitude

±12 dB

Acoustic system

Loudspeaker unit

Co-axial 5o x 8

Co-axial 5º x 12

Frequency response

90Hz-20KHz

80Hz-20KHz

Sensitivity (1m, 1W)

92±2dB

94±2dB

Maximum sound pressure level (1m)

116±2dB

120±2dB

Horizontal radiation angle

>120°

Vertical radiation angle

<50°

Adjustable range of main beam (vertically)

±45°

Power input

Input voltage

AC200-240V /50-60Hz

Other
specifications

Dimension of product (L x W x H) mm

170×165×1304mm

170×165×1840mm

Packing dimension (L x W x H) mm

250×245×1395mm

250×245×1930mm

Net weight

18.5 kg

25kg

Gross weight

22kg

29kg

DSP3036W  360W Waterproof Digital Column Speaker

Relate Products

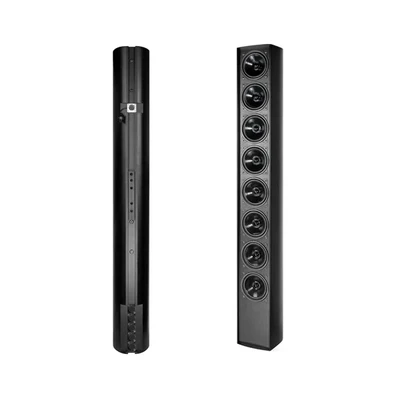

  • DSP1501 Phased Array Column Speaker
