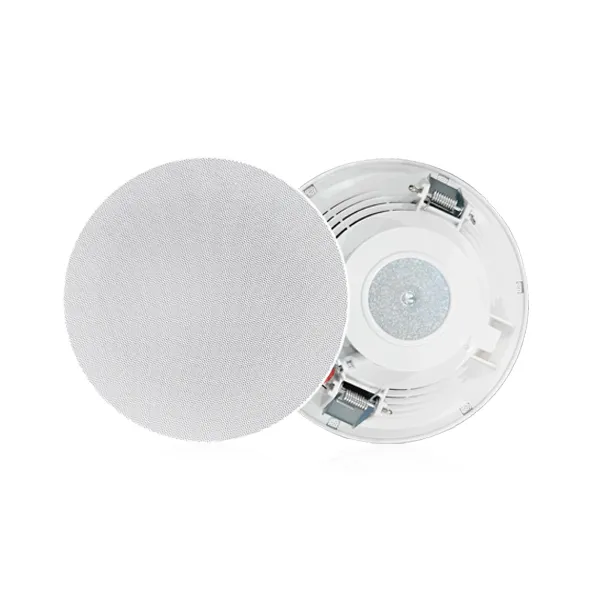

DSP135 5 Inch 6W Ceiling Speaker

Features

● Equipped with a 5″ full-range speaker for balanced sound
● Delivers 6W output with 100V line compatibility
● Covers a frequency range of 140Hz to 15kHz
● Provides stable performance with 86dB sensitivity
● Max. SPL reaches up to 93.7dB
● Designed for easy installation with a 155mm cut-out
● Compact size and lightweight for flexible mounting
● Aluminum grille for enhanced durability and corrosion resistance
● Made of durable engineering plastic for long-term use

  • Introduction
  • Specification

This is a 100V line ceiling speaker featuring a 5″ full-range driver, delivering clear and balanced sound reproduction across a frequency range of 140Hz to 15kHz. It provides 6W rated power output with stable acoustic performance, making it suitable for background music and public address applications in indoor environments, such as offices, retail stores, classrooms, and other commercial spaces.


Name

DSP135

Speaker Unit

1×5”

Rated Power

6W

Rated Voltage

100V

Frequency Response (-10dB)

140-15KHz

Sensitivity

86dB

Max. SPL

93.7dB

Product Dimensions

φ173*70mm

Cut-Out Dimensions

155mm

Product Weight

0.5kg
