IP Network System

IP Audio System is based on TCP/IP protocol, it can save cable laying and it is more convenient to arrange zones.

DSPPA has 2 IP PA Systems, one is MAG6182 IP Network PA System, which can link up to 250 zones or even more; the other is DSP9100 IP Network Audio System, which can link up to 200 zones. There are optical PA solutions for medium and large PA projects like airports, railway stations, shopping malls, supermarkets, parks, schools, hospitals, churches, mosques, etc.
MAG6182 IP Network PA System is specially designed for large Public Address System and General Alarm System (PAGA System). It can work within LAN network and can work across different networks. The default zone control of this system is 250, and it can be extended to unlimited zones via VPN network. The console of this system is MAG6182, and end user can set up the whole network system using the main software MAG6180, without the console MAG6182. It supports computer remote control via software MAG6100.
MAG6182 adapts modularized technology, while all kinds of functions can be extended via different modules, like Audio Inputs, Monitor, Fire Alarm, TEL Input, etc.
DSP9100 IP Network Audio System is specially designed for medium PA System. It supports console off-line operation and auto running after the system is set up. The remote control and paging station DSP9101 can even control each terminal and make remote paging after the console is off-line. The console of this system is DSP9000, and end user can set up the whole network system using the main software DSP9000, without the console DSP9100.
Both MAG6182 IP Network PA System and DSP9100 IP Network Audio System have a whole set of terminals, like IP Amplifier, IP Speaker, IP Remote Paging Station, POE Speaker, etc.

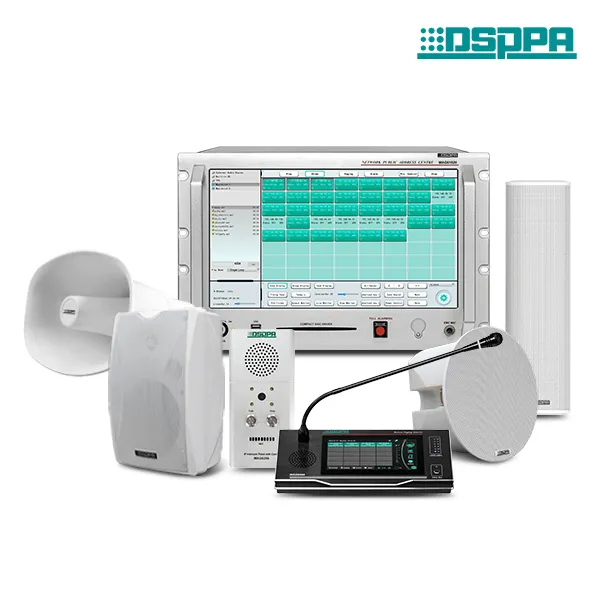

  • IP Network PA SystemIP Network PA SystemNovember 30, 2016MAG6182 IP Network System is Public Address System based on IP network. There is no limit of zone numbers. It supports zones individual & group control. It is consisted of all necessary IP termina...view
  • POE IP Audio SystemPOE IP Audio SystemMarch 24, 2020POE network power supply system uses the existing Ethernet cat-5 wiring to transmit data signals for some IP based terminals (such as IP network broadcast system terminals, speakers, speakers, etc.) and also provides DC power supply technology for suchview
  • IP Intercom SystemIP Intercom SystemNovember 18, 2016DSP9100 IP Network System is 200 zones Public Address System based on IP network. It supports 200 zones individual & group control via online and off line running. It is consisted of all necessary...view
  • Railway PA SystemRailway PA SystemMay 6, 2023The railway public address system is a highly integrated and intelligent public address system based on computer network technology and modular and layered architecture.The system is fully digital, wi...view
  • POE SIP Audio SystemPOE SIP Audio SystemApril 8, 2021view
  • 4G Wireless PA System4G Wireless PA SystemApril 19, 20214G Cloud Network Wireless PA System is a network PA system based on TCP/IP protocol and adopts transmission methods of 4G network, Internet and Radio Digital Signal.At usual time, this system can real...view
  • Dante Audio PA SystemDante Audio PA SystemAugust 22, 2019Dante intelligent public address system adopts modular and hierarchical design. Based on the most advanced Dante digital audio protocol, it realizes the lossless compression, long-distance transmissio...view

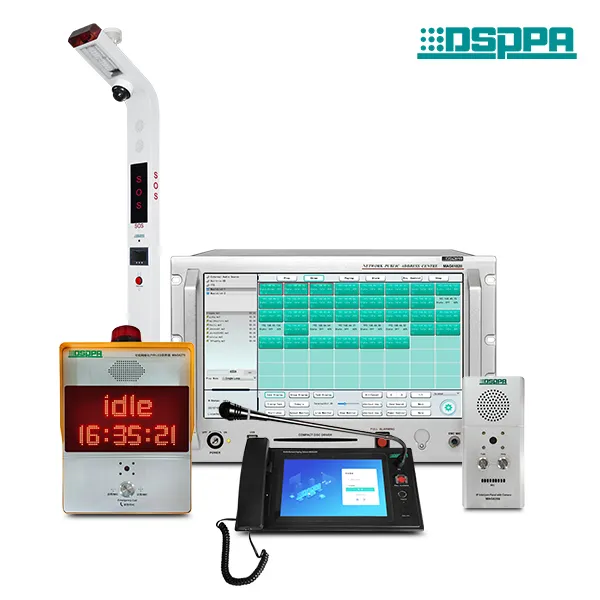

  • IP Visualized Intercom SystemIP Visualized Intercom SystemSeptember 4, 2019Visual Network PA System is a highly integrated and intelligent public address system, which is based on TCP/IP technology, in modular layered construction and integrates the functions of audio networ...view
  • IP Audio Peripheral SystemIP Audio Peripheral SystemOctober 13, 2020PC10II network PA System is a high integrated and centralized control PA system. It is consist of Control Software, CD player, Multi-media player, FM tuner, Preamplifier, Zone selector, M/S amplifier ...view
