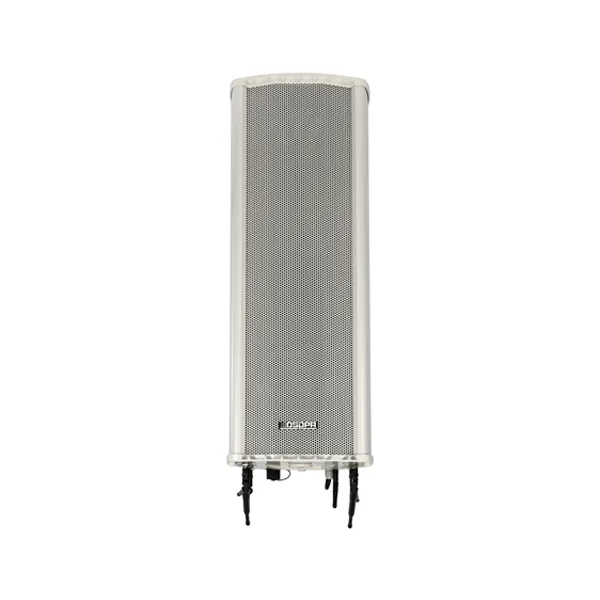

MAG8622 120W Network Column Speaker

Features

● Supports background music, emergency paging, and alarm signals from the main system.
● Utilizes UWB high-precision detection technology with a maximum effective range of 150 meters.
● Features two true diversity UHF wireless microphones that extend sound reinforcement coverage beyond 150 meters.
● Integrated DSP digital audio processor enables 9-band equalization adjustment, while DRC audio algorithm, AGC, and feedback suppression algorithms significantly enhance live sound quality.
● The networked system supports multi-zone scheduled narration, manual narration, and proximity-triggered card-based narration.
● It also allows grouping of narration zones.
● Remote access via the network enables configuration of wireless microphone frequency bands, volume adjustments, and other parameters through the terminal's web interface.
● Equipped with 60W/120W digital amplifiers to meet live sound reinforcement requirements.

  • Introduction
  • Specification

The Network Column Speaker is a fully digital analog-to-digital conversion processor integrated with high-fidelity speakers, operating on TCP/IP protocols. This modern networked terminal features an integrated processor and speaker design, enabling remote audio streaming through local output signals. The built-in dual UHF wireless microphones with true diversity technology extend maximum sound projection distance beyond 150 meters, while UWB high-precision detection ensures optimal coverage. Capable of multi-zone timed announcements and proximity-based automatic interpretation, it serves as an ideal public address system for schools, stadiums, squares, parks, parking lots, train stations, airports, residential complexes, and commercial venues.


Model

MAG8621

MAG8622

Rated Output Power

60W

120W


Mic Output

Input Sensitivity

10±2mV

Frequency Response

160Hz-12kHz

Distortion

≤1%

SNR

≥75dB



Network Output

Input Sensitivity

10±1dB

Frequency Response

80Hz-16kHz

Distortion

≤1%

SNR

≥75dB

Packing Dimensions (H×W×L) (mm)

285×315×540mm

285×315×775mm

Product Dimensions (H×W×L) (mm)

230×250×430mm

230×250×665mm

Gross Weight

13.5kg

14.5kg

Net Weight

8.8kg

11.80kg
