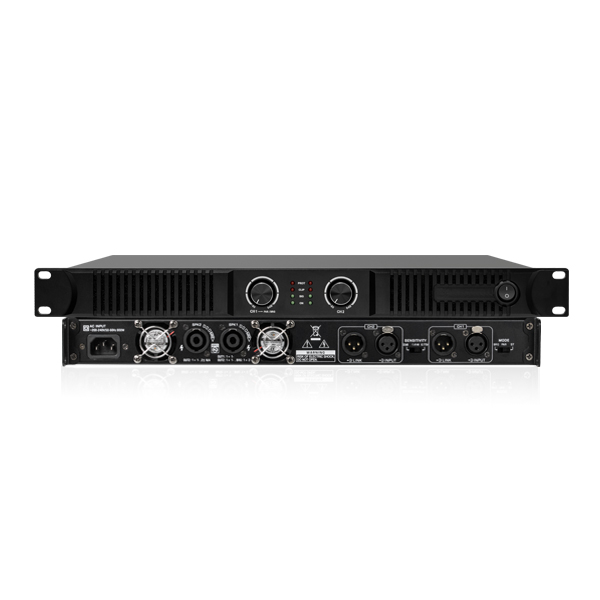

DPA2300/DPA2450/DPA2650/DPA2800 is a 1U 2-channel Class-D professional power amplifier that delivers powerful performance in a compact chassis. It features a high-efficiency switching power supply, precision gain control, and selectable output modes (Stereo / Parallel / Bridge) to suit different system setups. With balanced XLR inputs/outputs, Speakon connectors, and selectable input sensitivity (0.775V / 1.414V / 32dB), it ensures flexible connectivity. The unit is built with an aluminum alloy front panel and efficient front-to-rear airflow for reliable cooling, while its intelligent protection system guards against overload, short circuit, overheating, and more—ensuring stable and safe operation at all times.
Model | DPA2300 | DPA2450 | DPA2650 | DPA2800 | ||
8Ω Stereo Power* | 2×300W | 2×500W | 2×650W | 2×800W | ||
4Ω Stereo Power** | 2×500W | 2×800W | 2×1000W | 2×1300W | ||
8Ω Bridge Power** | 1×1000W | 1×1600W | 1×2000W | 1×2600W | ||
Frequency Response | 20Hz-20kHz(+0/-1dB) | |||||
THD | ≤0.15% | |||||
SNR | ≥100dB | |||||
Input Sensitivity | 0.775V/1.414V/32dB | |||||
Input Impedance (Balanced/Unbalanced) | 20kΩ/10kΩ | |||||
Voltage Gain | 36dB | 38dB | 39.3dB | 40dB | ||
Power Supply | AC200-250V/50Hz | |||||
Amplifier Type | Class-D | |||||
Cooling Method | Front-to-Rear Airflow | |||||
Protection Function | Soft Start, DC Protection, Short Circuit Protection, VHF Protection, Overload Protection, Clipping/Limiting, Overheat Protection, Power-On Volume Ramp-Up | |||||
Connectors | Input Section | Balanced XLR Female Input / Balanced Parallel XLR Male Output | ||||
Output Section | SPEAKON Output | |||||
Product Dimensions (L×W×H) | 200×483×45mm | 260×483×45mm | 260×483×45mm | 260×483×45mm | ||
Package Dimensions (L×W×H) | 350×550×90mm | 350×550×90mm | 350×550×90mm | 350×550×90mm | ||
Net Weight | 3.0kg | 3.3kg | 4.0kg | 4.0kg | ||
Gross Weight | 3.9kg | 4.3kg | 5.0kg | 5.0kg | ||
Note: 1. Power ratings marked with “*” are measured using a 40ms, 1kHz sine wave pulse at 1% THD. 2. Power ratings marked with “**” are measured using a 20ms, 1kHz sine wave pulse at 1% THD. | ||||||
