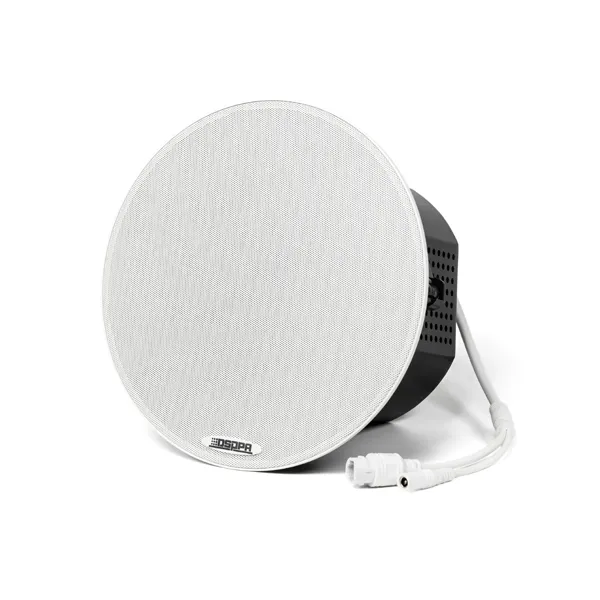

DSP168E 25W PoE Ceiling Speaker

Features

● Delivers clear and detailed sound with excellent speech reproduction.
● Built-in digital power amplifier, low distortion, low noise and large dynamic range.
● With the self-protection function, including temperature protection and short circuit protection.
● Can play background music, emergency paging, alarm signals, and others from the system host.
● Made of high-quality injection-molded engineering plastic, offering long-lasting durability without deformation or discoloration.

Contact now Leave message Download

Introduction
Specification

DSP168E is a standard PoE switch supporting both PoE+ (IEEE 802.3at) and PoE++ (IEEE 802.3bt) standards. It features a built-in digital amplifier to minimize noise and is equipped with comprehensive protection functions, including temperature and short-circuit protection, ensuring high operational safety. The device supports broadcast and paging over a local area network, offers wide sound dispersion, is easy to install, and delivers outstanding voice and music reproduction.

Model			DSP168E
Acoustic System		Sensitivity (1m, 1W)	89±3dB
		Max. SPL (1m)	102±3dB
		Frequency Response	44Hz-20kHz
Amplifier System	NET Playback Built-in Amplifier	Frequency Response	80Hz-16kHz (±3dB)
		Playback Sensitivity	-10dB
		Distortion	≤1%
		SNR	≥76dB
Power Supply			PoE+, PoE++, DC24V/2A
Rated Power (RMS)			802.3at(PoE+) 15W、802.3bt(PoE++) 25W, DC24V 25W
Package Size			280×280×205mm
Product Size			Ø233* 170mm
Gross Weight			3kg
Net Weight			2.25kg
