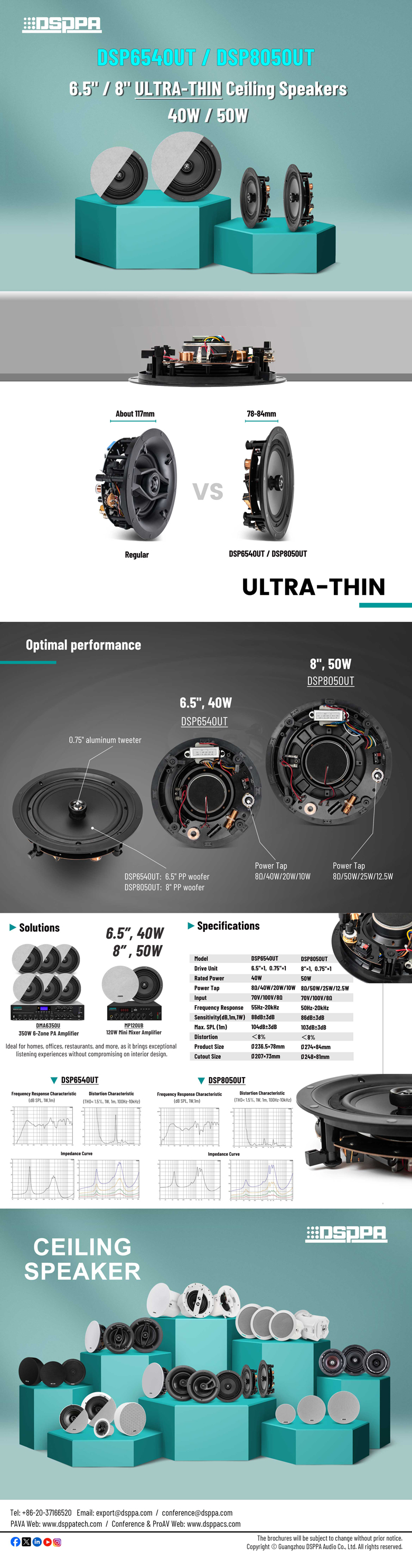

This 40W ultra-thin ceiling speaker, with a 6.5" PP woofer and 0.75" aluminum tweeter, offers versatile sound for discreet installations. It features power tapping options at 8Ω/40W/20W/10W and a frequency range of 55Hz-20KHz for clear audio. Its slim profile makes it an unobtrusive addition to any ceiling, maintaining the aesthetic of your space while delivering high-quality audio. This ultra-thin in-ceiling speaker is ideal for homes, offices, restaurants, and more, as it brings exceptional listening experiences without compromising on interior design.
Model | DSP6540UT |
Drive Unit | 6.5”×1, 0.75”×1 |
Rated Power | 40W |
Power Tap | 8Ω/40W/20W/10W |
Input | 70V/100V/8Ω |
Frequency Response | 55Hz-20kHz |
Sensitivity(dB,1m,1W) | 88dB±3dB |
Max. SPL (1m) | 104dB±3dB |
Distortion | ＜8% |
Product Size | Ø236.5×78mm |
Cutout Size | Ø207×73mm |
