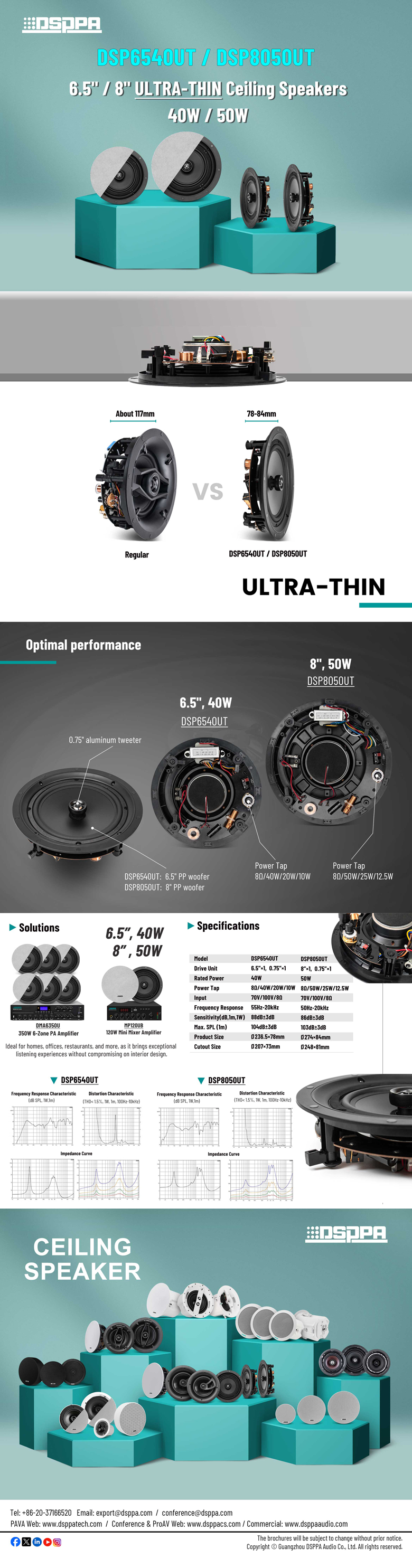

This 50W ultra-thin ceiling speaker, with an 8" PP woofer and 0.75" aluminum tweeter, offers versatile sound for discreet installations. It features power tapping options at 8Ω/50W/25W/12.5W and a frequency range of 50Hz-20KHz for clear audio. Its slim profile makes it an unobtrusive addition to any ceiling, maintaining the aesthetic of your space while delivering high-quality audio. This ultra-thin in-ceiling speaker is ideal for homes, offices, restaurants, and more, as it brings exceptional listening experiences without compromising on interior design.
Model | DSP8050UT |
Drive Unit | 8”×1, 0.75”×1 |
Rated Power | 50W |
Power Tap | 8Ω/50W/25W/12.5W |
Input | 70V/100V/8Ω |
Frequency Response | 50Hz-20kHz |
Sensitivity(dB,1m,1W) | 86dB±3dB |
Max. SPL (1m) | 103dB±3dB |
Distortion | ＜8% |
Product Size | Ø274×84mm |
Cutout Size | Ø248×81mm |
