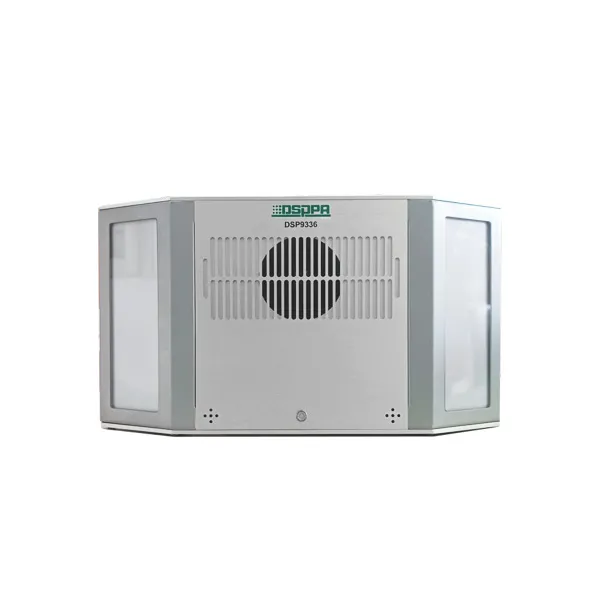

DSP9336 Campus Anti-Bullying Intelligent Early Warning System

Features

● Supports PoE power supply for flexible wiring and easy maintenance.
● Supports standard SIP protocol.
● Supports two-way intercom.
● Supports audible and visual alarm.
● Supports broadcasting, intercom, and remote voice announcement.
● Supports intelligent recognition of alarm keywords with real-time alerts.
● Optional alarm notification via phone call, SMS, or IP phone dialing.
● Automatically records alarm information for convenient review and analysis of bullying incidents.
● Alarm keywords can be customized as needed, with up to 200 groups supported.
● Alarm keyword sensitivity and trigger count can be customized based on the site environment.
● Supports connection to external smoke detectors.
● Supports distributed mode for independent operation without a server.

  • Introduction
  • Specification
  • Connection

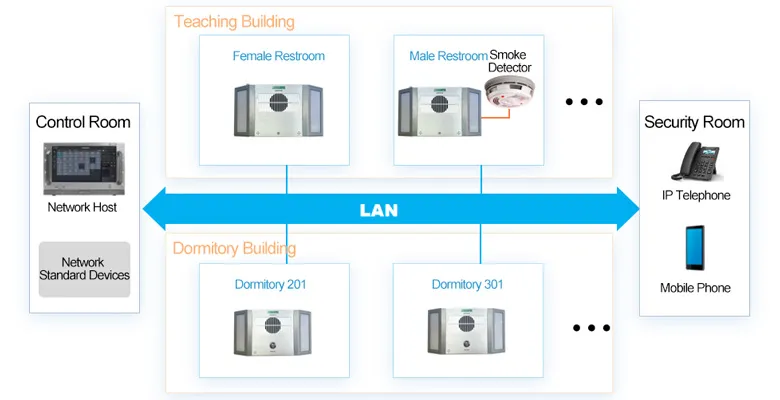

The campus anti-bullying system supports long-distance audio pickup and automatically triggers an alarm and recording upon detecting specific keyword speech, with both audible and visual alerts. Each action of the pickup device (such as keyword detection or recording) is automatically stored for future review. When connected to an external smoke detector, it can also function as a fire alarm system. The system supports distributed mode, enabling independent operation without a server, making it suitable for concealed corners or private areas. It provides basic rescue and fire warning functions and can serve as a small-scale emergency broadcasting unit.


Model

DSP9335

DSP9336

Rated Output Power

≥1W

Frequency Response Range

80-16kHz±3dB

Total Harmonic Distortion

Rated Conditions

≤2%

Normal Operating Conditions

≤2%

Sensitivity

1KHz-10dB

S/N Ratio

≥65dB

DC24V Output

<5W

Outer Packaging Dimensions (L×W×H mm)

349×321×125mm

Machine Dimensions (L×W×H mm)

295×162×52mm

Gross Weight

2.5kg

2.6kg

Net Weight

1.20kg

1.35kg


DSP9336 Campus Anti-Bullying Intelligent Early Warning System
