MAG201FD Explosion-Proof Networked SIP Telephone

Features

● Can play background music, emergency paging, and alarm signals from the system host.
● Supports full-duplex intercom with networked paging stations and telephone terminals.
● Supports quick or dial paging to various broadcast terminals.
● Supports standard SIP protocol and can connect to customer SIP telephone systems, allowing remote paging and full-duplex intercom with mobile phones and SIP phones.
● Equipped with one short-circuit input interface and one short-circuit output interface for linking with cameras or other devices.
● Supports quick-dial key operation.
● Supports web-based configuration of SIP parameters.
● Power supply: PoE (802.3) or DC24V.
● Power output: 15W/8Ω via PoE digital amplifier, 30W/4Ω via DC supply.
● Industrial-grade explosion-proof design: waterproof, dustproof, explosion-proof, rugged and durable, with good sealing.

  • Introduction
  • Specification

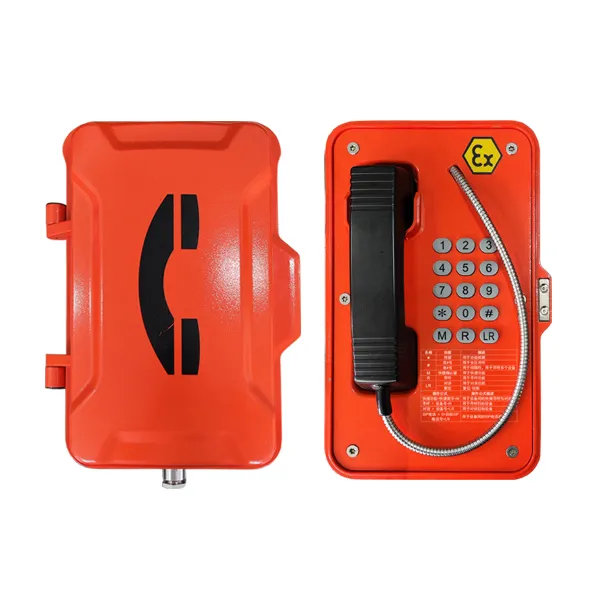

The Explosion-Proof Networked SIP Telephone is an intrinsically safe device designed to be explosion-proof, waterproof, and dustproof. Housed in a corrosion-resistant, vandal-proof cast aluminum waterproof enclosure, it supports full-duplex intercom communication. The device is compatible with customer SIP telephone systems and features dedicated dialing keys for rapid access to specific zone broadcasting, all-zone broadcasting, and selective zone broadcasting functions. Equipped with one short-circuit input interface and one short-circuit output interface, it enables integrated triggering with fire alarm control systems, surveillance management systems, and emergency broadcast systems. Suitable for deployment in various explosive environments, the device can be integrated with our network public address system to achieve telephone paging, intercom, background music broadcasting, fire alarm linkage, scheduled broadcasting, and more. Additionally, it can connect to customer SIP telephone systems, enabling SIP phones to perform paging and intercommunication functions with networked terminals.



Model

MAG201FD

Network Output

Input Sensitivity

10±1dB

Frequency Response

20Hz-20kHz

Distortion

≥1%

Signal-to-Noise Ratio

≤70B

Maximum Amplifier Output Power

DC Power Mode

30W 4Ω

PoE Power Mode

15W 8Ω

Package Dimensions (L×W×H)

435×265×200mm

Unit Dimensions (L×W×H)

339×246×126mm

Gross Weight

7.25kg

Net Weight

5.25kg
