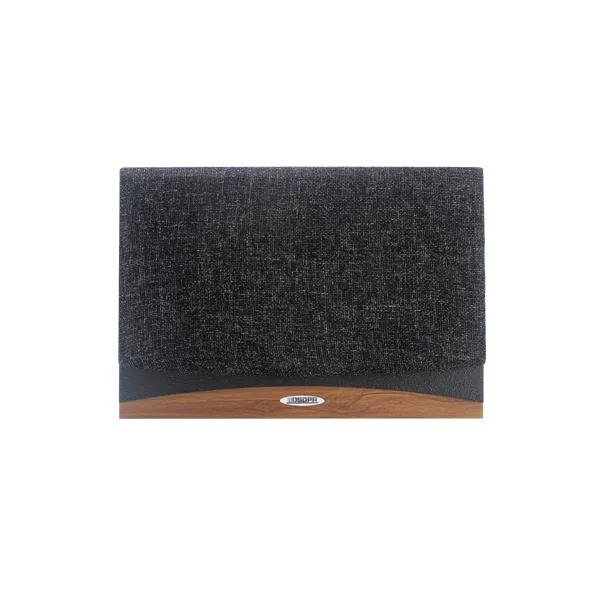

MAG6294 Converged Media Network Speaker

Features

● Based on TCP/IP protocol, this networked multifunctional decoder player supports cross-network operation.
● The integrated networked indoor speaker combines a terminal processor with high-fidelity speakers.
● Equipped with industrial-grade dedicated network audio decoding chips, it can play background music, emergency paging, and alarm signals from the system host.
● Connectable to any network location.
● It supports decoding 16-bit digital audio streams at up to 48kHz sampling rates.
● The built-in 2×20W digital amplifier meets audio playback requirements for various scenarios.
● Two local line inputs enable connection to all-in-one machines or other audio sources for program expansion.
● A dedicated HDMI output interface seamlessly integrates with audiovisual systems, enabling integrated audio-video transmission.

Contact now Leave message Download

Introduction
Specification

The converged media network speaker is a fully digital analog-to-digital converter processor operating on TCP/IP protocol. It delivers background music, emergency paging, and alarm signals from the system host. Featuring two local line inputs and one output for resistive passive speaker amplification, it integrates seamlessly with audio-visual systems through an HDMI interface, enabling integrated audio-visual transmission.

Model	MAG6294
Sound System	Speaker Unit	6.5"×1
	Sensitivity (1m,1W)	88±2dB
	Max. SPL (1m)	96±2dB
	Frequency Response	200Hz-10KHz
Audio Input	AUX Input Sensitivity	100mV
PA System	Rated Power (RMS)	2×20W/8Ω
	Frequency Response	80Hz-16KHz
	Distortion	≤1%
	SNR	≥71dB
Other Specifications	Power Input	AC 100-240V/50-60Hz
	Decoding Format	MP3，WAV
	Network Interface Standard	RJ45 10/100M
	Agreement in Support	DHCP，UDP，ICMP，IGMP (Groupcasting)
	Packing Size (W x H x D)	498×283×153mm
	Product Size (W x H x D)	360×240×115mm
	Gross Weight	5kg
	Product Weight	3.7kg
