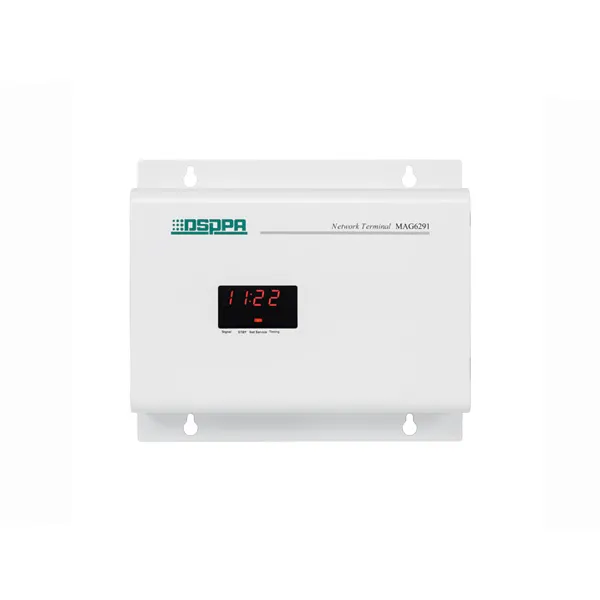

MAG6291 Converged Media Wall-mounted Terminal

Features

● The embedded Linux OS is both stable and reliable, meeting the demands of uninterrupted operation for 7×24 hours.
● Based on ARM Cortex-A7 architecture with a 1.2GHz dual-core processor, ensuring excellent stability, continuity, and low latency during video playback.
● Wall-mounted installation design.
● Built-in industrial-grade special network audio decoding chip, can play background music from the system host, emergency paging, alarm signals, etc. The network programme source has more than 7 levels of priority level management function, which is divided into three major categories: background broadcasting, business broadcasting and emergency broadcasting;
● Audio decoding supports up to 48kHz sampling rate and 16-bit digital audio streams.
● Built-in 2×25W digital amplifier to meet sound reinforcement requirements.
● Integrated DSP digital audio processor.
● One USB port for local playback of music from a USB drive (video not supported).
● Equipped with a digital display to show operating status and real-time clock, allowing users to monitor device status at any time.
● Supports external infrared adjustment and configuration for easy device commissioning.
● Audio source priority management: supports both network and line input sources with adjustable priority levels and depth.
● One Micro SD card slot for storing offline scheduled task audio files.
● One local line input for expanding the device with additional program sources.

Contact now Leave message Download

Introduction
Specification

The Converged Media Wall-Mounted Terminal is a fully digital network audio and video playback device based on the TCP/IP transmission protocol. It integrates high-precision audio and video decoding, multi-channel broadcast reception, and dynamic information release into one intelligent interactive unit. Designed for applications in education, transportation, corporate campuses, and other scenarios, it enables the transformation from “one-way broadcasting” to “converged media interaction”. The device adopts a dual-network redundancy design and can be installed anywhere with network access. With intelligent server control, scheduled tasks enable the distribution of multimedia content (audio/video files or live streams), while dynamic electronic bulletin information can be synchronously displayed and managed across multiple terminals.

Model		MAG6291
AUX IN	Maximum Distortion Output Voltage	≥14.15 V
	Input Sensitivity	300mV±50mV
	Distortion	≤1%
	Frequency Response	40Hz-16kHz
	SNR	≥71DB
AUX OUT	Line Output Level	1000mV±100mV
	Distortion	≤0.5%
	SNR	≥71DB
USB/SD /NET Play MP3 Music	Output Sensitivity	≥14.15 V
	Frequency Response	40Hz-16kHz
	Distortion	≤1%
	SNR	≥80dB
Overcurrent, Overheating, Overvoltage, Undervoltage Protection		Support
Package Size (L×W×H mm)		330× 270× 125
Product Size (L×W×H mm)		222× 195× 49.5
Net Weight		1.2kg
Gross Weight		2.0kg

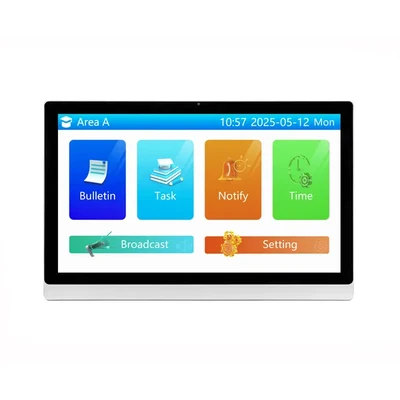

PREV: MAG6292 Converged Media Screen Terminal
