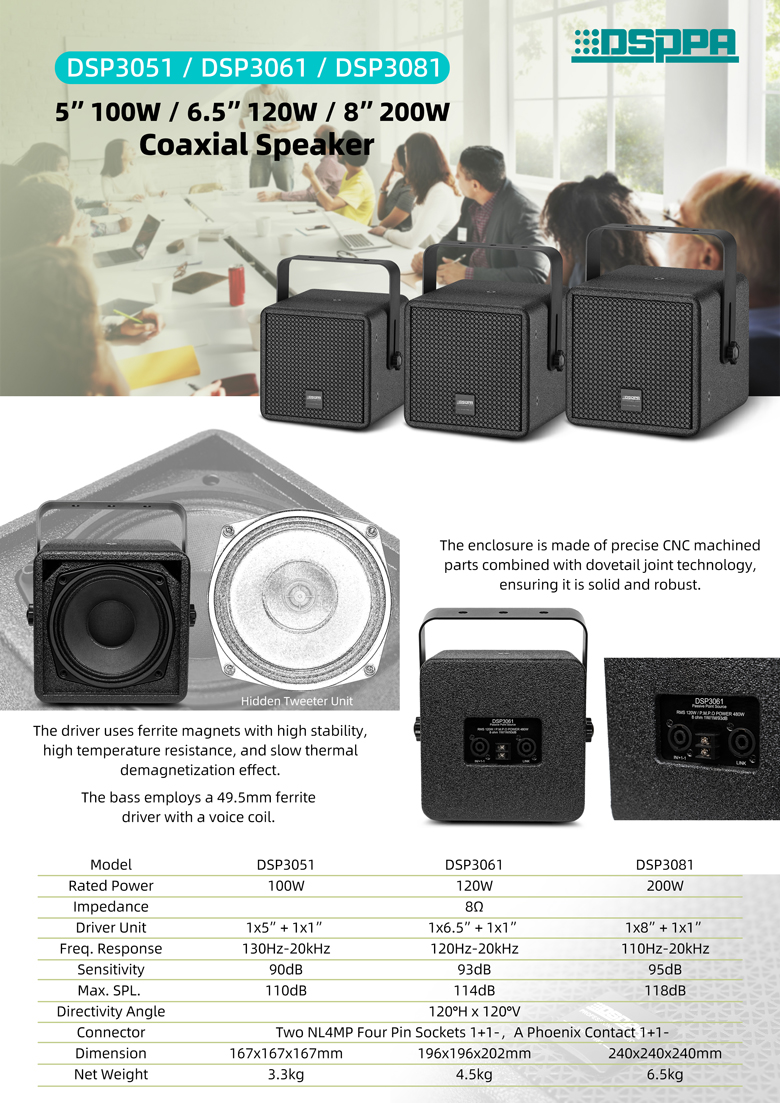

DSP3061 2-Way 6'' 120W Coaxial Wall Mount Speaker

Features

● The bass employs a 38.5mm ferrite driver with a voice coil.
● The driver uses ferrite magnets with high stability, high temperature resistance, and slow thermal demagnetization effect.
● The enclosure is made of precise CNC machined parts combined with dovetail joint technology, ensuring it is solid and robust.
● Application scenarios: conference rooms, multi-purpose halls, lounge bars, shopping malls, public places.

  • Introduction
  • Specification

DSP3061 6'' 120W Coaxial Speaker employs a 38.5mm ferrite driver with a voice coil with high stability, high temperature resistance, and slow thermal demagnetization effect. It can be used in many places, such as conference rooms, multi-purpose halls, lounge bars, shopping malls, public places.


Model

DSP3061

Rated Power

120W

Constant Impedance

Driver Unit

1x6.5”+ 1x1”

Freq. Response

120Hz-20kHz

Sensitivity

93dB

Max. SPL.

114dB

Directivity Angle

120°H x 120°V

Connector

Two NL4MP Four Pin Sockets 1+1-,

A Phoenix Contact 1+1-

Dimension

196x196x202mm

Net Weight

4.5kg
