DSP9342 Audio and Video Intercom Terminal with Two Buttons

Features

● With two SIP lines.
● Support full-duplex hands-free calling.
● With editable call button (speed dial button, intercom button, etc.).
● Flush or wall-mounted installation.
● Support PoE power.
● With 3 functions in 1 terminal: Intercom, broadcast, and emergency paging.
● Meet IP65 protection level.

Contact now Leave message Download

Introduction
Specification

The product is an all-digital network-based intercom device with a proven VOIP solution at its core, stable and reliable performance; adopts hands-free digital full duplex mode for clear and loud voice; offers user-friendly buttons, easy installation, classy design, sturdiness and durability, as well as low power consumption.

Model		DSP9331	DSP9332	DSP9341	DSP9342
Communication Protocol		SIP 2.0
Voice Streaming	Audio Amplifier	1W
	Volume Control	Adjustable
	Full Duplex Hands-Free	Support (AEC)
Interface	Speaker	1 (XH2.54 connector)
	LAN	10/100BASE-TX s Auto-MDIX, RJ-45
Power Supply		PoE powered or DC 12V/2A
Recommended Cable		CAT5 or higher
Operating Temperature		-40°C~70°C
Relative Humidity of Operating Environment		10%-95%
Storage Temperature		-40°C~70°C
Machine Dimensions (mm)		19411554mm		21411554mm
Package Dimensions (mm)		26524580mm		28524580mm
Gross Weight		1.5 kg		1.6 kg
Net Weight		0.9 kg		1 kg

PREV: DSP9341 Audio and Video Intercom Terminal with One Button

NEXT: DSP9335 Campus Anti-Bullying Intelligent Early Warning System

Relate Products

MAG206FD Explosion-Proof Networked Industrial Intercom TerminalNovember 12, 2025The MAG206FD is a flameproof, waterproof, and dustproof analog-to-digital conversion device operating on an embedded Linux system, providing stable and reliable performance. It features a built-in 3W ...view
DSP9341 Audio and Video Intercom Terminal with One ButtonApril 15, 2024The product is an all-digital network-based intercom device with a proven VOIP solution at its core, stable and reliable performance; adopts hands-free digital full duplex mode for clear and loud voic...view

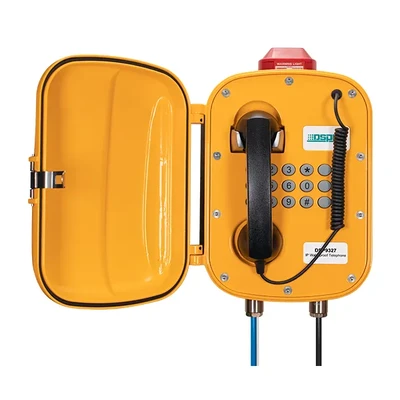

DSP9327S IP Waterproof Sound Alarm Wall-Mounted Telephone+15W SpeakerNovember 3, 2021DSP9327S IP Waterproof Phone+15W Speaker suitable for use in environments with special requirements such as subways, light rails, highways, ships, mines, power plants, steel companies, etc, which have...view

«
