D100W D100R NearLink Wireless Microphone System

Features

● Transmitter Features:
● Designed for classroom teaching, based on NearLink wireless technology.
● Powered by a 100% domestic RISC-V processor.
● No battery anxiety, lithium battery lasts up to 4 hours.
● Fast-charging case included, capable of fully recharging the microphone more than three times.
● Compact size: 32 mm diamete r, 13.8 mm thickness.
● Ultra-lightweight design, weighing only 10.5 g.
● Two wearing options (clip-on and head-mounted magnetic accessories, freely switchable) for easier interaction.
● Multi-room use, no cross-channel interference (any microphone can pair with any receiver).
● One teacher, one microphone, clean and hygienic.
● Simple operation, only a single power button.
● Receiver Features:
● 86-box design, easy to install.
● DSP audio processing with built-in feedback suppression, automatic gain control, smart noise reduction, and intelligent sound field calibration.
● Automatically pairs when powered on near the card-swipe area, and disconnects automatically when powered off.
● Wireless receiver supports UAC digital output and analog output.

  • Introduction
  • Specification

The D100W D100R NearLink Wireless Microphone System is designed for educational applications, providing clear and stable sound reinforcement and recording for classroom teaching and lecture capture. With advanced NearLink wireless transmission technology, it creates an interference-free teaching environment. Powered by a domestically developed RISC-V processor, the system ensures high performance, low latency, and exceptional stability. Integrated with intelligent algorithms such as feedback suppression, automatic gain control, smart noise reduction, and intelligent sound field calibration, the microphone delivers clear, consistent audio across the entire classroom without volume fluctuations. Its compact, lightweight design ensures a comfortable fit throughout the class. Compared with traditional handheld microphones, it frees the user’s hands for natural gestures and movement. Compared with far-field microphones, it provides superior sound quality and a wider pickup range, allowing free movement without loss of clarity.

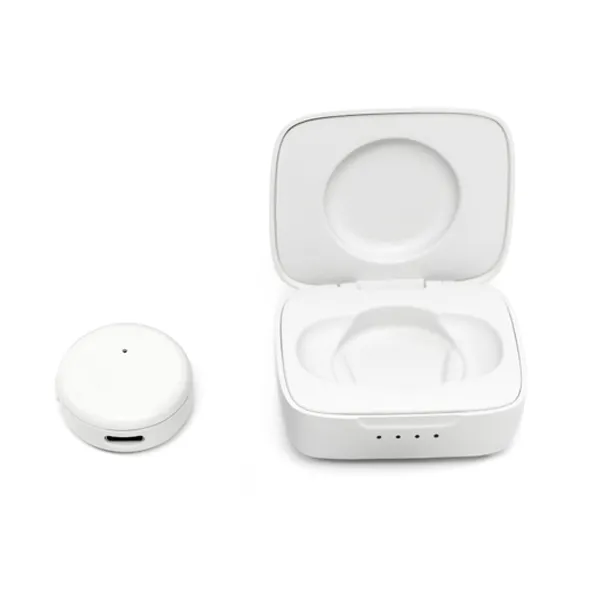

A complete microphone set includes a charging case, a transmitter, and a receiver. The charging case enables quick recharging of the transmitter, while the receiver supports both UAC digital output and dual analog outputs for flexible integration into various classroom systems.


Model

D100W

Transmitter

Transmission Method

NearLink SLE protocol

Polar Pattern

Omnidirectional

Operating Range (Line-of-Sight)

20m

RF Output Power

10dBm

Frequency Response

100Hz~20kHz

Sampling Rate

48KHz

Bit Depth

16 bit

SNR

≥80dB

Built-in Battery Capacity

97 mAh

Charging Method

Via charging case contacts, also supports USB-C charging

Battery Life

Approx. 4 hours

Charging Time

Approx. 1 hour

Weight

10.5 g

Dimensions

32 mm × 32 mm × 13.8 mm

Working Temperature

0 °C – +50 °C

Charging Case

Battery Capacity

300mAh

Power Supply Mode

Powered via charging case contacts

Number of Charges for Transmitter (Microphone)

>3 times

Charging Time

Approx. 1 hour

Weight

39g

Dimension

60.3 mm × 50.1 mm × 28.4 mm

Working Temperature

0 °C – +50 °C

Model

D100R

Transmission Method

NearLink SLE protocol

Operating Range (Line-of-Sight)

20m

RF Output Power

10dBm

Frequency Response

100Hz~20kHz

Sampling Rate

48KHz

Bit Depth

16 bit

SNR

≥80dB

Audio Output

UAC digital, balanced analog (Phoenix connector), unbalanced analog (3.5 mm TRS)

Power Supply Mode

12 V DC or USB-C

Weight

30g

Dimension

86.1mm×86.1mm×27.3mm

Working Temperature

0 °C – +50 °C

Storage Temperature

-10 °C – +50 °C
