POE170VF 15W ONVIF IP Horn Speaker

Name: POE170VF 15W ONVIF IP Horn Speaker
Brand: Guangzhou DSPPA Audio Co., Ltd.

Features

● 10/100M adaptive, support DHCP/static IP.
● Support standard ONVIF protocol.
● Can play background music, emergency paging, alarm signals, etc. from the host system.
● Adopt high-quality ABS plastic and high-dynamic range speaker unit for clearer and brighter sound.
● Equipped with a mounting bracket for easy installation.
● All-weather design, suitable for both indoors and outdoors, applicable to different occasions.
● Can adjust short circuit detection mode.
● Can download songs and support formats such as MP3 and WAV.
● Can adjust the priority order of the three sources, such as ONVIF, network, and short-circuit input.

Contact now Leave message Download

Introduction
Specification

This device is an ONVIF horn speaker that supports public address and intercom network system. With the support of the international standard ONVIF protocol, it can accept broadcasts and calls from LAN, and can be quickly deployed to the desired place with only one network cable. Through the web interface, you can upload and download songs for direct playback. It can be independently bound to a camera and triggered to play music via the camera’s API. The horn speaker offers a wide sound diffusion angle, is easy to install, and delivers excellent reproduction of both speech and music.

Model		POE170VF
Amplifier Output	Rated Power (RMS)	15W 8Ω
	S/N Ratio	≧75dB
	Frequency Response	80Hz-16KHz
Speaker	Driver Unit	2.5"
	Sensitivity	102dB±2dB
	Maximum Sound Pressure Level	115dB±2dB
	Frequency Response	350Hz-6.3KHz
Power Supply		PoE+ (IEEE 802.3at) / DC24V 2A (Standby)
Others	Network Interface	RJ45 (10/100M)
	Power Connector	24V/2A
	Outer Package Dimensions (H×W×D mm)	630510335mm (4pcs)
	Machine Dimensions (H×W×D mm)	285205291mm
	Gross Weight	10.8kg(4pcs)
	Net Weight	1.9 kg

PREV: No information

NEXT: DSP6114VF Outdoor AI SNR Self-adaptive POE Column Speaker

Relate Products

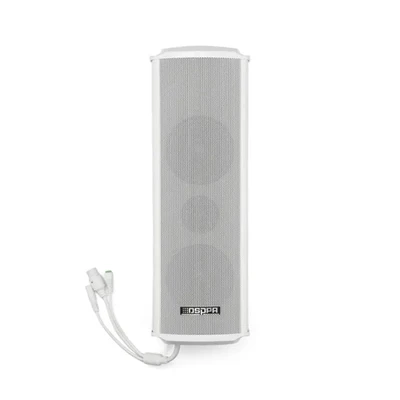

DSP6114VF Outdoor AI SNR Self-adaptive POE Column SpeakerAugust 8, 2025The Outdoor AI SNR Self-adaptive POE Column Speaker system features high-sensitivity, wide dynamic range drivers for powerful bass output. Integrated with third-party SIP servers, it seamlessly connec...view
