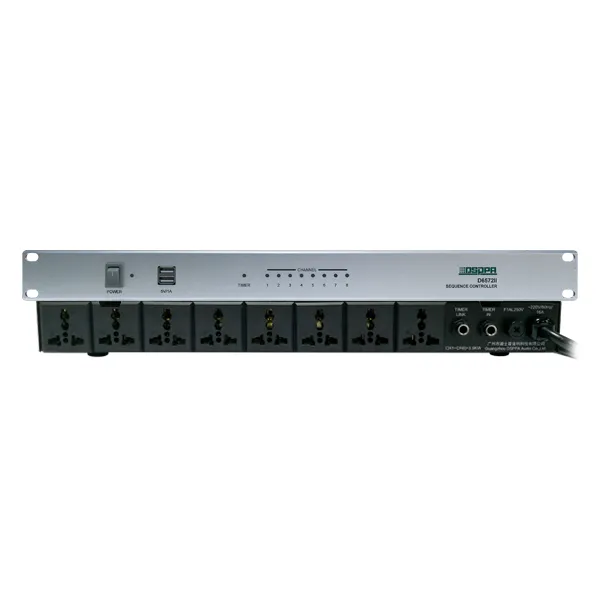

D6572II 8 Channel Power Supply Sequence Controller

Features

● Features 8 independent high-power output channels.
● Offers a universal socket compatible with various 3-pole and 2-pole European sockets.
● Single channel supports a maximum output of 10A.
● Total input current capacity stands at 16A.
● Front panel displays on/off status of each channel for monitoring purposes.
● Enables one-click switching to turn individual channels on/off.
● Sequenced power on/off capability safeguards amplifiers and power supply systems from potential damage due to high currents, ensuring safe operation.

  • Introduction
  • Specification

The D6572II Sequence Controller offers support for eight independent high-power outputs, catering to a range of three-stage power sockets and two European-style round head sockets. Its versatile application extends to multimedia classrooms, multi-function halls, conference rooms, projection splicing, video conferencing, monitoring centers, building control systems, management and command centers, and various other fields.

Model

D6572II

Power Output

8 channel, universal socket

Single-channel Maximum load

10A

Control Manner

Start up by manual sequence, external short circuit signal trigger

Power Capacity

Total capacity: 220V, 16A

Input Power

AC220V/50Hz

Sequence Interval

0.4-0.5s

Product Size (L×W×H) (mm)

484×240×44mm

Package Size (L×W×H) (mm)

524×320×91mm

Net Weight

3.85kg

Gross Weight

6kg
