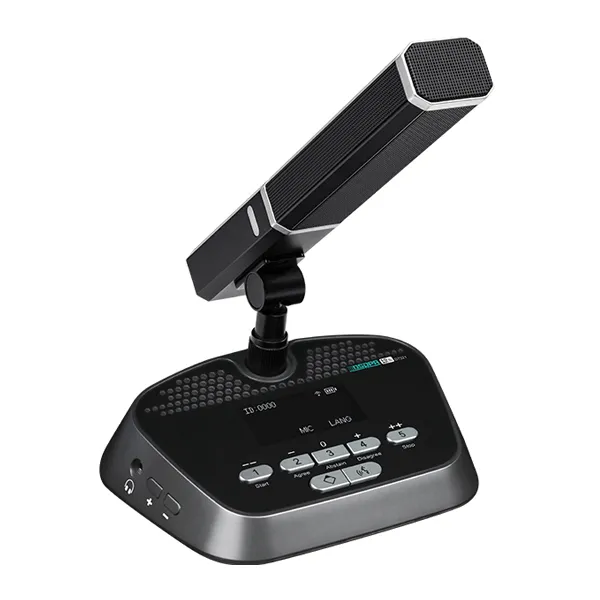

D7321 5G WiFi Conference Chairman Microphone with Voting Function

Features

● Use 2.42 inch OLED screen, display voting results, volume, microphone status, power state, WiFi status, etc.
● Wide viewing angle, with high contrast 128 × 64
● Built-in rechargeable lithium battery, battery capacity 10000mAh, continuously speaking for more than 8 hours
● 128-bit AES digital encryption technology, WAP / WAP2 security connection, MAC address filtering, hidden SSID, prevent eavesdropping and unauthorized access
● High directive microphone, with windproof cover, with LED indicator ring, speech for red, wait for green
● D7321 is chairman microphone, with first priority button
● Using a low-delay technology, minimum delay is less than 20 ms; non-compressed audio transmission,
● 48K sampling rate, digital control, high quality of audio transmission

  • Introduction
  • Specification

D7321 is chairman microphone, with first priority button. Using a low-delay technology, the minimum delay is less than 20 ms; non-compressed audio transmission. With 48K sampling rate, digital control and high quality of audio transmission.
New Generation Full Digital 5G Wi-Fi Wireless Conference System, Instantly Setup, leave more time for inspiring minds. DSPPA, make wireless come true.The major pain point on traditional meeting room is to connect all devices by cable, which is complex and wasting of time. DSPPA Wireless conference system, start the meeting in anytime, anywhere, increase the efficiency on planning.

model

D7321/D7322

The structure type

Embedded

Effective frequency range of gain limitation (± 3dB)

Unit A to Unit B.

130Hz-14kHz

Host to unit line

130Hz-14kHz

Unit to host line output

50Hz-14kHz

Speaker power

1.2W

Static power consumption

<3.2W

Maximum power consumption:

4.5W

Signal-to-noise ratio

>81dB

Crosstalk attenuation

>80dB

Harmonic distortion

<1%

Headphone output

9dBu, 8-32 Ω, 3.5mm

Operating Power Supply(Battery Pack)

DC5V is charged by Type-C port (more efficient charging in off state)

Microphone type

Elector cardiac capacitive type

Sensitivity

-30dBV/pa

input resistance

2kΩ

Equivalent noise

20dB(SPL)

Maximum sound pressure level

125dB(THD<3%)

Package dimensions:

485×280×120mm (with two in a bpx)

Machine Dimensions (W × D × H)

175×133×46mm

Gross weight

2.0kg

Net weight

0.6kg
