DSP402 B/W 20W Wall Mount Speaker

Features

● Coaxial 4"speaker;
● Rated power:20W, max power 40W
● Input voltage:70V/100V
● Power taps at 1/2,1/4 power or 16Q(8Q for option)
● Sensitivity:90±3 dB;
● Frequency Response:88~20KHz
● Adjustable wall mounting parts
● Strong ABS material body
● Dimension:128×128×131mm
● Weight:1.5kg

  • Introduction
  • Specification

DSP402 can be used in public address system, with its fast installation wall mounting bracket and angle adjustable. It's idea for many smaller pleaces, such as  cafes,  shops, restaurants, offices etc.

Model No.
DSP402B DSP402W
Rated Power/Max Power
20W/40W
Speaker
2-way coaxial 4"speaker
Input Voltage
70/100V Line and power tabs at 1/2,1/4 power or 16Ω(8Ω option)
Sensitivity
90±3dB
Frequency Response
88-20KHz
Mounting Method
On-wall mounting speaker
Colour
Black/White
Dimension
128×128×131mm
Weight
1.5kg

Relate Products

  • DSP118/ DSP119 Miniature Satellite Speaker

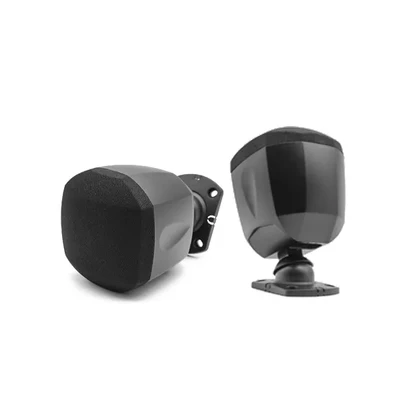

    DSP118/ DSP119 Miniature Satellite Speaker
