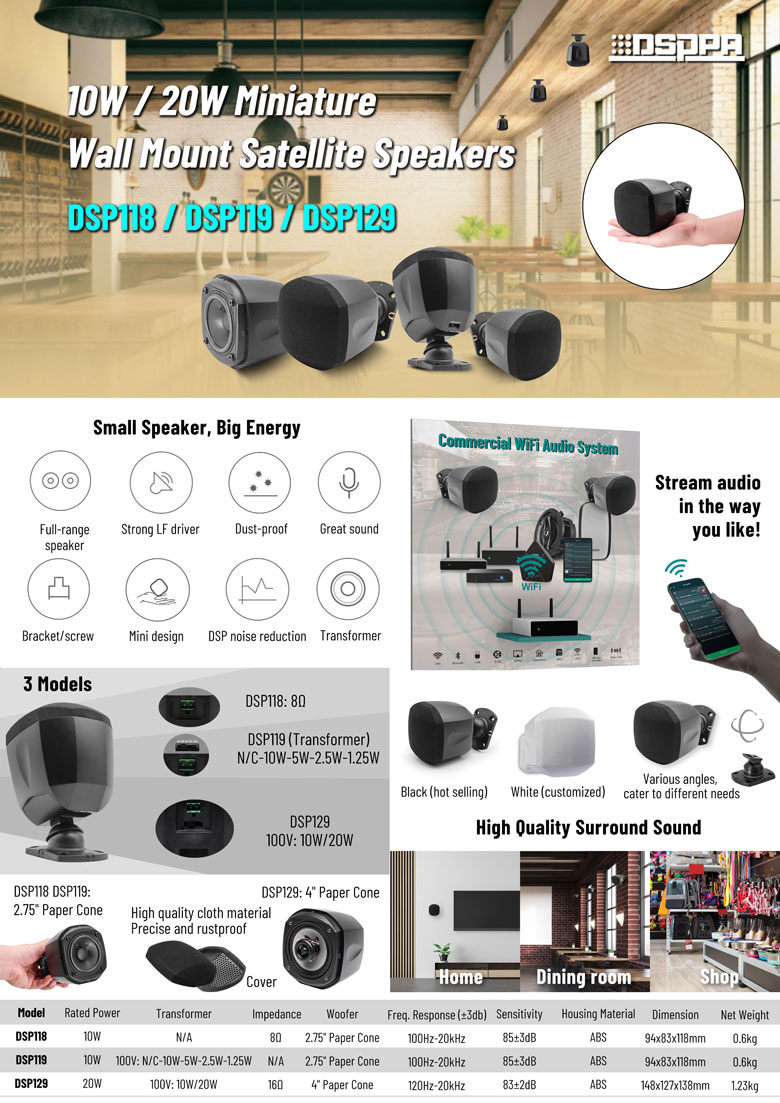

DSP129 20W Miniature satellite coaxial speaker with power tap

Features

● Commercial PA system wall-mounted speaker.
● Rated output power 20W at 70V/100V&16Ω.
● Power tap is optional according to user’s need.
● 4" coaxial driver unit.
● Quick installation with brackets.
● Small and neat appearance with extraordinary sound quality.
● Ideal for offices, hotels, bars and shopping mall public address system.

  • Introduction
  • Specification

Install the DSP129 20W Miniature satellite coaxial speaker with a power tap to enhance audio without using floor space. This wall-mounted speaker is a commercial PA system designed for various applications such as offices, hotels, bars, and shopping malls. It features a rated output power of 20W at 70V/100V & 16Ω, with power tap. Using a 4" coaxial driver unit, it delivers extraordinary sound quality in a small and neat appearance, and enables quick installation with brackets.

Model

DSP129

Woofer

4" paper cone

Frequency Response (±3dB)

120Hz-20kHz

RMS Power

20W

Sensitivity

83±2dB

MAX. SPL. (1m)

97±2dB

Transformer

70V/100V

70V:5W/10W;100V:10W/20W

Nominal Impedance

16Ω

Attachment

Bracket/screw

Product Dimensions

148×127×138mm

Housing Material

ABS

Net Weight

1.23kg
