DW63 Wireless Chairman Microphone

Name: DW63 Wireless Chairman Microphone
Brand: Guangzhou DSPPA Audio Co., Ltd.

Features

● With 2.23" screen to display working status, signal strength, battery capacity etc
● Wireless connection and speaking
● Low power consumption, continue working more than 12 hours
● With red crycle indictor for working status
● Chairman microphone with priority, can control the speech order
● Power supply by lithium battery

Contact now Leave message Download

Specification

Model		DW63
Operating Power		DC2.8V-4.5V
Consumption Power		120mA
Microphone Rod		420mm
Audio Channel	Communication Method	UHF wireless method (one-way)
	Frequency Range	530MHz-590MHz
	Modulation Mode	FM
	Maximum Modulation	50K
	Radiant Power	＞+10dBm (10MW)
	Frequency Deviation	<15ppm
	Reference Speaking Distance	8cm~30cm
Control Channel	Communication Method	Wireless method (two-way)
	Number of Channels	60channels
	Frequency Range	916MHz~928MHz
	Modulation Mode	GFSK
	Receiving Sensitivity	＞0dBm (1V)
	Radiant Power	＞+10dBm (10MW)
	Frequency Deviation	<15ppm
	Date Rate	4.8Kbps
Operating Temperature		-10℃~40℃
Dimensions (W×H×D)		132mm×72mm (excluding microphone rod)×143mm
Weight		0.85kg

PREV: DW61 Wireless Delegate Microphone

NEXT: DW64 Wireless Delegate Microphone

Relate Products

D5816 True Diversity Wireless MicrophoneJune 10, 2021This product is a professional wireless microphone system. D5816 is the wireless microphone receiver, which can be combined with several kinds of transmitters to form a wireless microphone system. The...view

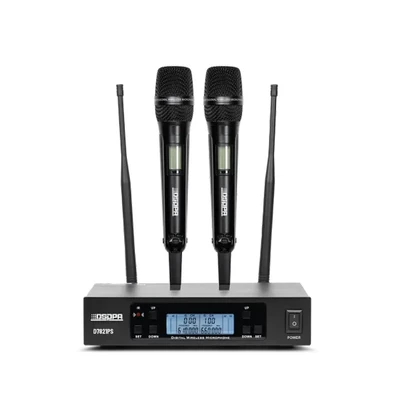

D7821PS True Diversity UHF Wireless Microphone System ( Receiver×1+Handheld Microphones×2 )April 16, 2026The D7821PS, D7822PS, D7823PS, and D7824PS True Diversity UHF Wireless Microphone Systems are engineered to deliver consistent and reliable wireless performance, with transmission distances reaching u...view
