D5816 D5841 D5842 D5843 D5844 True Diversity Wireless Microphone

Features

● 4-channel PLL design.
● UHF200 channel PLL digital lock automatic communication function.
● Adopt IR frequency pairing.
● With display screen (to display frequency, channel, squelch, level, etc.).
● With volume control for each channel.
● AF output (using “XLR” sockets for separate output and mixed output).

  • Introduction
  • Specification

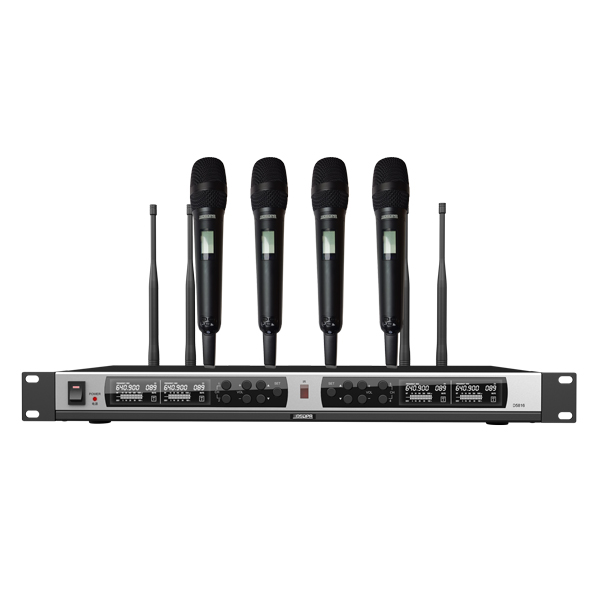

This product is a professional wireless microphone system. D5816 is the wireless microphone receiver, which can be combined with several kinds of transmitters to form a wireless microphone system. The combination set includes D5841 (UHF Wireless Microphone System+4 Handheld Wireless Microphones), D5842 (UHF Wireless Microphone System+4 Clip Wireless Microphones+4 Waistband Transmitters), D5843 (UHF Wireless Microphone System+4 Headset Wireless Microphones+4 Waistband Transmitters), and D5844 (UHF Wireless Microphone System+4 Desktop Wireless Microphones).



System Index

Parameters

Frequency Range

632-695.25MHz

Modulation Mode

Broadband FM

Adjustable Range

60MHz

Number of Channels

200

Channel Interval

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±45KHz

Audio Frequency Response

120Hz-16KHz (±3dB)

SNR

>73dB

Distortion

≤1%

Working Temperature

-10℃+40℃

Effective Range

150-200m (in open environment)

Package Dimensions (L×W×H)

530×335×220mm

D5841 Gross Weight

6.2kg

D5842/D5843 Gross Weight

5.2kg

D5844 Gross Weight

6.5kg

Receiver

Wireless Interface

BNC/50Ω

Sensitivity

-100dBm

Spur Suppression

≥75dB

Display Method

Display Screen

Working Power

DC12V ,600mA

Package Dimensions (L×W×H)

530×335×100mm

Machine Dimensions

430×176×44mm

Gross Weight

3.9kg

Net Weight

2.3kg

Transmitter

Antenna Method

1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone.

Output Power

High power 14dBm; low power 6dBm

Spur Suppression

-60dB

Power Supply

2 AA 1.5V alkaline batteries

Endurance

More than 10 hours at 14dBm; more than 15 hours at 6dBm.

Desktop MIC Rod Length

420mm

Display Method

Display Screen

Handheld MIC Dimensions (Maximum Diameter × Length)

50×265mm (Handheld part diameter 34~38mm)

Waistband Transmitter Dimensions

110×64×25mm (excluding antenna length, 80mm more if included)

Desktop MIC Dimensions

151×100×55mm

Net Weight of Desktop MIC

0.45kg

Net Weight of Handheld MIC

0.45kg

Net Weight of Waistband Transmitter

0.1kg
