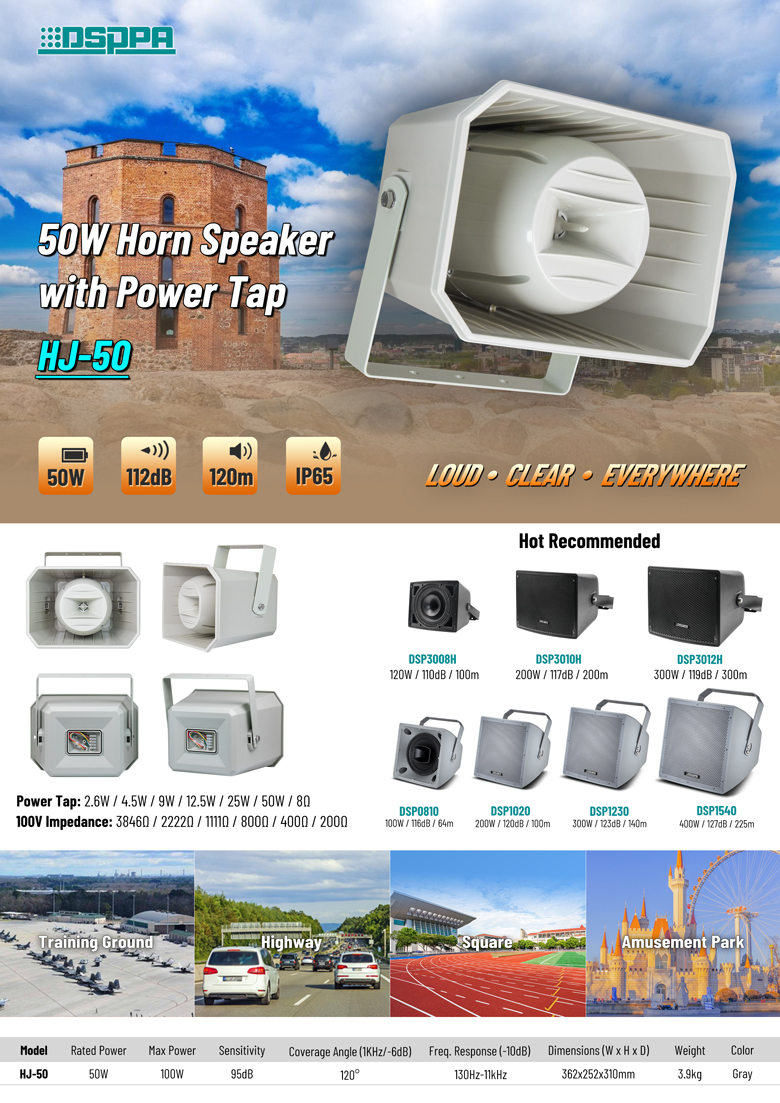

HJ-50 50W Horn Speaker

Features

● Rated power : 50W
● Max Power: 100V
● Sensitivity : 95dB
● Excellent sound quality and easy installation.

  • Introduction
  • Specification

HJ-50 is a 50W Horn Speaker. It has excellent sound quality, simple structure, simple and convenient power setting. It is easy to install and suitable for indoor environment. What's more, it can play excellent background music and voice broadcasts.



Model

HJ-50

Rated Power

50W

Power Adjustment

100V

Red (+) / White (-)

2.6W

Yellow (+) / White (-)

4.5W

Red (+) / Green (-)

9W

Green (+) / White (-)

12.5W

Yellow (+) / Green (-)

25W

Red (+) / Yellow (-)

50W

Red (+) / Black (-)

50W

100V Impedance

3846/2222/1111/800/400/200Ω

Maximum Power

100W

Maximum Sound Pressure Level

112dB

Sensitivity

95dB

Coverage Angle (1KHz/-6dB)

120°

Frequency Response (-10dB)

130Hz-11kHz

Distortion

<10%

Dimensions (W x H x D)

362 x 252 x 310mm

Weight

3.9kg

Color

Gray
