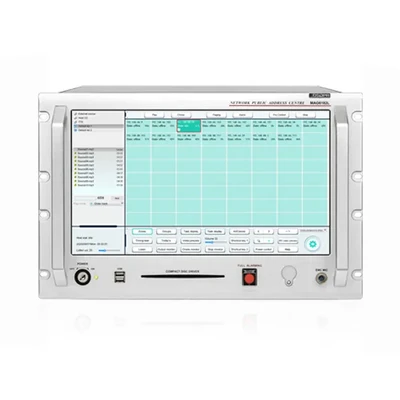

MAG6182II IP Network PA Center

Features

● 17.3" large colour screen, with touch screen control.
● Full digital transmission; is transmitted mainly by network(LAN)
● Industrial circuit board for stable running
● Powerful matrix; rich built-in electro-acoustic program sources
● Built-in four independent audio input channels, CD player and special audio source
● Standard 19’’ design for rack mounting
● Log view function; view operation status
● Control the volume of timed contents individually
● Broadcast resumes automatically after connection recovery
● A full alarming button is offered

  • Introduction
  • Specification
  • Connection

This MAG6182II is a Network Public Address Center, which is a computer network technology based, modular structured and highly integrated and intelligent public address system.

The network public address device is compatible with terminals with various functions, including player terminals, VOD terminals, paging terminals and one-button emergency calling terminals etc. The device is composed of a player, a zoning mechanism, a timer and an equalizer, in addition it also provides powerful audio matrix function.

The network public address system is applicable to airports, wharves, college towns, schools, large gatherings (such as the Expo Park), gymnasium, industrial parks, parks, rail transit and express ways.

Model

MAG6182II

Computer System

WIN7 and above

CPU

Intel(R) Core(TM)i5-6300U

Memory

8G DDR4

Hard Disk Capacity

120G SSD+ 500G HDD

AudioPlaybackFormat

MP3

Play Stream

120k-320K

Operating System

32/64 bits

Number of Terminals Supported by Network

Less than110 unicast, unlimited multicast

Screen Size

17.3" LCD screen

ControlMethod

Touch screen

TimingPowerLoadCapacity

Single channel current: 2A

SystemAudioSignal SNR

LINE: >70dB;  MIC: >60dB

SystemAudioSignal Distortion

1kHz<0.5%

SystemAudioSignal Standard Input Level

LINE: 300mV±20mV;  MIC: 10mV±2mV.

SystemAudioSignal Standard Output Level

0dBV

Power OutputMethod

Constant resistance output

UndistortedOutputPower

10W

Power Consumption

AC 220V/50Hz/150W

Package Dimensions (L×W×H mm)

535×360×540

Machine Dimensions (L×W×H mm)

483×308×445

Gross Weight

28.7kg

Net Weight

19.5kg

System Software

NetworkPAsystem software package. All rights reserved, no copying or counterfeiting is allowed.



MAG6182II IP Network PA Center
