WH-7F/WH-7FA/WH-7FB/WH-7FC Volume Controller

Features

● Simple and modern appearance
● Large knob design, easy to rotate and labor-saving
● Use environmental protection ABS plastic,
● harmless to human body
● Impact resistance, not easily deformed.
● Support 6 gear control, support EMC signal
● International general size, simple installation,
● easy disassembly
● Power could be extended to 30W, 60W

  • Introduction
  • Specification

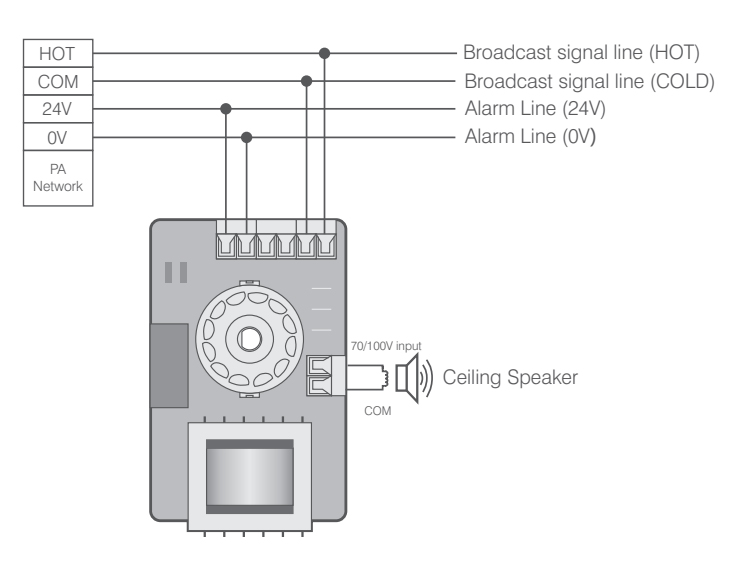

  • Connection

Simple and modern appearance
Streamline design, lightweight cover, rounded appearance, can be perfect with any decorative style.
Ergonomics Design
Large knob design, easy to rotate and labor-saving.
High quality material
Use high-quality environmental protection ABS plastic, tasteless, odorless, harmless to human body; Impact resistance, not easily deformed.
Powerful
Support 6 gear control, support the emergency broadcast signal strong plug function.
Simple installation
International general size, simple installation, easy disassembly.

Model

WH-7F

WH-7FA

WH-7FB

WH-7FC

RMS

6W

15W

30W

60W

Input Voltage

70V/100V

Attenuation Range

6×3dB

Freq. Resp.

50Hz-20kHz

THD

<0.5%

Expander

Not attached

Attached (Size: 40×65.5×35mm)

Package Size

155×75×70mm

Product Size

114×70×55mm

Product Weight

225g

235g

310g

425g

Color

White

Application Cable

Tow-wire, Four-wire, Six-wire


WH-7F/WH-7FA/WH-7FB/WH-7FC Volume Controller
