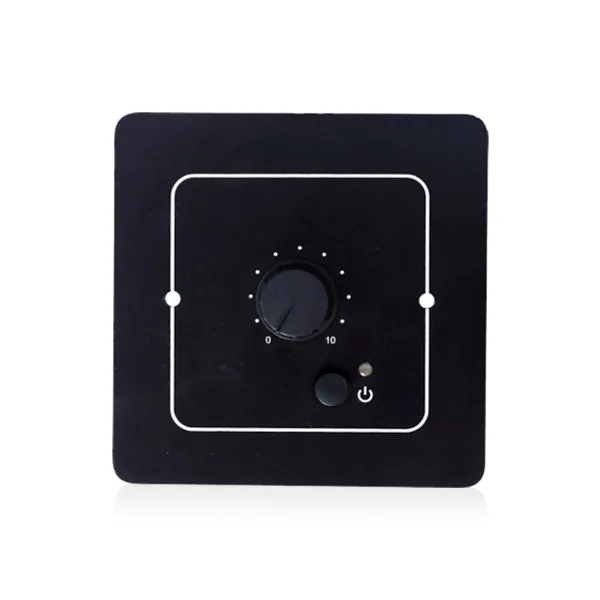

CMA01V Wall Panel with Volume Control

Features

● RJ45 terminal connection.
● Power On/Off.
● Remote VR to controls the Master level of the main unit.

Introduction
Specification

The Wall Panel with Volume Control connects via an RJ45 port and supports the networking of multiple panels in a daisy-chain configuration. It is designed for remotely powering the main unit on/off and precisely selecting or switching specific audio channels, enabling centralized management across different areas.

Model	CMA01V
Current Consumption	<50mA
Data Speed	CANBUS
DC Power	+24VDC
Operation Temperature / Humidity	-10℃~+45℃@95%R.H. (Non-Condensing)
Storage Temperature	-20℃~+70℃
Dimensions (W×D×H)	89×52×89mm
Weight	0.5kg
