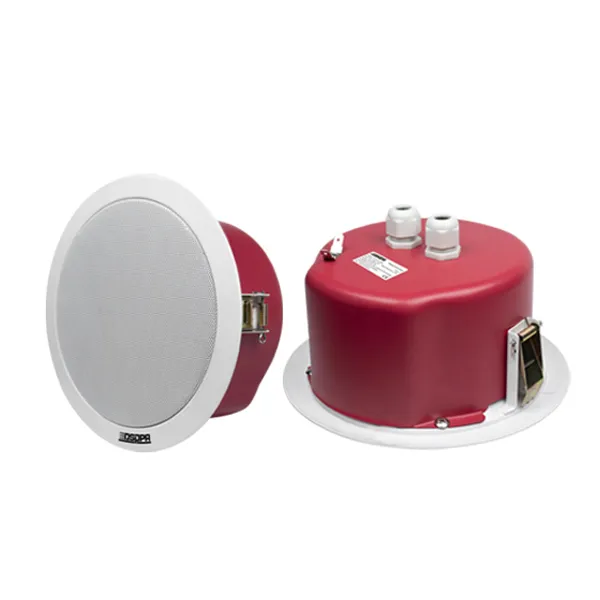

DSP2254EN 10W EN54 Fireproof Ceiling Speaker with Fire Dome

Features

● EN54-24 certified, suitable for indoor voice alarm and public address systems.
● Supports 100V line connection with selectable 10W/5W/2.5W power taps.
● Features a 6.5" full-range dual-cone driver for clear and intelligible sound.
● Steel fire dome and aluminium protective grille provide fireproof protection and durability.
● Equipped with a ceramic connector and built-in thermal fuse for reliable operation.
● Designed for false ceiling or gypsum panel installation and supports daisy-chain wiring.

Contact now Leave message Datasheet Declaration of Performance (DOP)

Introduction
Specification

The DSP2254EN is an EN54-certified fireproof ceiling speaker designed for indoor voice alarm and public address systems. Featuring a 6.5" full-range dual-cone driver with selectable 10W/5W/2.5W power taps for 100V line connection, it delivers clear and intelligible sound. The speaker is built with a steel fire dome and an aluminium protective grille for enhanced fire safety and durability. Equipped with a ceramic connector and built-in thermal fuse, it ensures reliable operation under demanding conditions.

Brochure---EN54-Loudspeaker-Series-DSP602EN-DSP5311EN-DSP2254EN-DSP207EN-DSP217EN_01.jpg

Brochure---EN54-Loudspeaker-Series-DSP602EN-DSP5311EN-DSP2254EN-DSP207EN-DSP217EN_03.jpg

Model	DSP2254EN
Standards	EN54-24:2008 Loudspeaker for voice alarm system for fire detection and fire alarm system
Environment Class EN54-24	Type A, indoor applications
IP rate protection (EN60529)	IP21C
Way no. / Speaker type	1-way dual cone, full range Ø165mm
Transformer	100V (10W – 5W – 2.5W)
In-axis Freq. response (-10dB)	350–18,000Hz
Sensitivity (@1m, 1W)	90dB
SPL max (@1m, Pmax)	100dB
Coverage angle (-6dB)	360° (500 Hz), 236° (1 kHz), 86° (2 kHz), 64° (4 kHz), 27° (8 kHz)
Directivity Index DI (dB)	2.6 (500 Hz), 3.3 (1 kHz), 7.1 (2 kHz), 8.5 (4 kHz), 10.8 (8 kHz)
Directivity Factor Q	1.8 (500 Hz), 2.2 (1 kHz), 5.2 (2 kHz), 7.0 (4 kHz), 12.0 (8 kHz)
Nominal/Music power	10W/20W
Nominal Impedance @ 1kHz	1kΩ (10W), 2kΩ (5W), 4kΩ (2.5W)
Dimensions Ø - P	200mm – 100mm
Weight	1.11kg
Material	Steel dome, painted grid in aluminium
Colour	White and red
Connections	Ceramic connector and thermal fuse

PREV: DSP227EN 24W EN54 Fireproof Wall Mount Speaker

NEXT: No information

Relate Products

DSP227EN 24W EN54 Fireproof Wall Mount SpeakerMay 21, 2021This product is a EN54-24 certified 100V full-range outdoor wall mount speaker with a 5" speaker and power taps for 24W/12W/6W. It can be used for voice alarm and fire detection. With IP66 waterp...view
DSP217EN 24W EN54 Fireproof Coaxial Wall-Mounted SpeakerMay 21, 2021The DSP217EN Fireproof Coaxial Wall-Mounted Speaker is an on-wall or shelf-mountable 100V projector speaker designed for demanding public address and voice evacuation systems, with full compliance to ...view

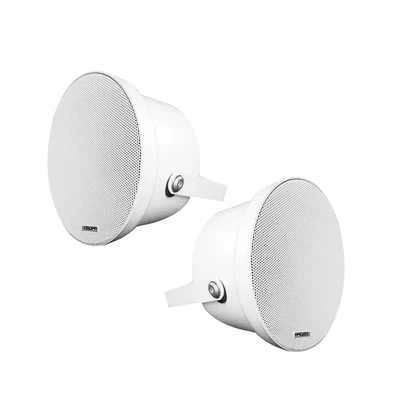

DSP3354EN 10W EN54 Fireproof Ceiling SpeakerNovember 15, 2016he on-wall loudspeaker DSP3354EN is specifically designed to meet the requirements of EN54-24 that is part of a series of norms concerning voice alarm evacuation in case of fire, so it also called as en54 ceiling speaker.view
