DSP217EN 24W EN54 Fireproof Coaxial Wall-Mounted Speaker

Features

● Compliant with EN54-24:2008 for reliable voice evacuation and public address.
● 2-way coaxial design featuring a 5" woofer and neodymium tweeter for clear, full-range audio.
● Selectable power taps (24W, 12W, 6W) and daisy-chain capability for versatile system design.
● Flame-retardant ABS V0 body and aluminum grille with IP54 protection for durable indoor use.
● Includes aluminum bracket, waterproof cover, and cable glands for a quick and secure installation.

Contact now Leave message Datasheet Declaration of Performance (DOP)

Introduction
Specification

The DSP217EN Fireproof Coaxial Wall-Mounted Speaker is an on-wall or shelf-mountable 100V projector speaker designed for demanding public address and voice evacuation systems, with full compliance to the EN54-24:2008 standard. It features a superior 2-way coaxial design with a 5" woofer and a neodymium tweeter, delivering exceptional sound clarity and coverage. With selectable power taps (24W, 12W, 6W), it offers unparalleled flexibility for various installation environments.

The robust construction includes a flame-retardant ABS V0 plastic body and an aluminum protection grid, ensuring long-term reliability and an IP54 rating for indoor use. The integrated dual IN-OUT ceramic connector is key for a secure and efficient daisy-chain setup, with the included aluminum fixing bracket, waterproof cover and cable glands ensuring a complete and professional installation.

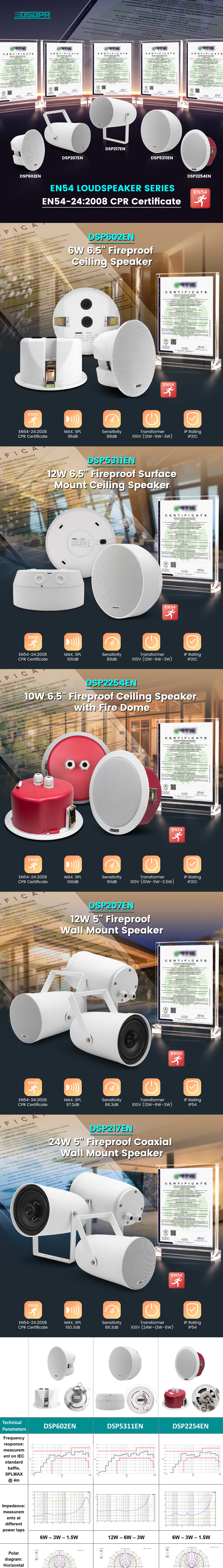

Brochure---EN54-Loudspeaker-Series-DSP602EN-DSP5311EN-DSP2254EN-DSP207EN-DSP217EN_01.jpg

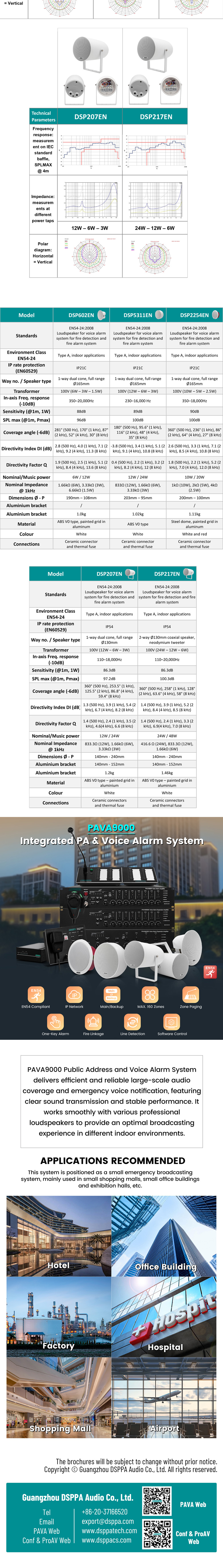

Brochure---EN54-Loudspeaker-Series-DSP602EN-DSP5311EN-DSP2254EN-DSP207EN-DSP217EN_03.jpg

Model	DSP217EN
Standards	EN54-24 Loudspeaker for voice alarm system for fire detection and fire alarm system
Environmental Class EN54-24	Type A, indoor applications
IP rate protection (EN60529)	IP54
Way no./Speaker type	2-way Ø130mm coaxial speaker, neodymium tweeter
Transformer	100V (24W – 12W – 6W)
In-axis Freq. response (-10dB)	110–20,000Hz
Sensitivity (@1m, 1W)	86.3dB
SPL max (@1m, Pmax)	100.3dB
Coverage angle (-6dB)	360° (500 Hz), 258° (1 kHz), 128° (2 kHz), 63.6° (4 kHz), 58° (8 kHz)
Directivity Index DI (dB)	1.4 (500 Hz), 3.9 (1 kHz), 5.2 (2 kHz), 8.4 (4 kHz), 8.5 (8 kHz)
Directivity Factor Q	1.4 (500 Hz), 2.4 (1 kHz), 3.3 (2 kHz), 6.9(4 kHz), 7.0 (8 kHz)
Nominal/Music power	24W/48W
Nominal Impedance @ 1kHz	416.6 Ω (24W), 833.3Ω (12W), 1.66kΩ (6W)
Dimensions Ø - P	140mm - 240mm
Aluminium bracket	140mm - 152mm
Weight	1.46kg
Material	ABS V0 type – painted grid in aluminium
Colour	White
Connections	Ceramic connectors and thermal fuse

PREV: DSP5311EN 12W EN54 Fireproof Surface-Mounted Ceiling Speaker

NEXT: DSP227EN 24W EN54 Fireproof Wall Mount Speaker

Relate Products

DSP602EN 6W EN54 Fireproof Ceiling SpeakerMarch 21, 2017The DSP602EN is an EN54-certified fireproof ceiling speaker designed for indoor voice alarm and public address systems. It features a 6.5" full-range dual-cone driver with selectable 6W/3W/1.5W p...view

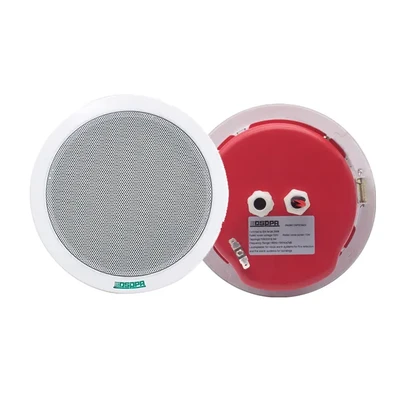

DSP3154EN 10W EN54 Fireproof Ceiling SpeakerNovember 15, 2016This product is a 10W fireproof ceiling speaker with aluminum mesh and fireproof cover, rust-proof and durable. The speaker features a reinforced adjustable clip for easy installation and a safety ste...view
