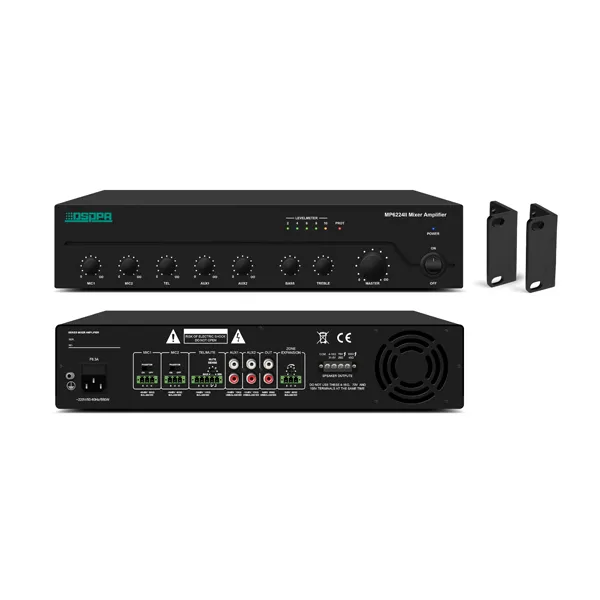

The MP6224II is a high-quality, high-performance commercial mixer amplifier, tailored for broadcasting, paging, and background music needs. It’s perfectly suited for diverse venues including schools, offices, shops, factories, mosques, churches, and large rooms, delivering clear, reliable audio to meet professional application requirements.
Model | MP6224II |
Rated Power | 250 W |
Power Consumption | 250 W (EN60065), 550 W at rated output (AC) |
Frequency Response | 50Hz – 20 kHz (±3 dB) |
Distortion | ≤1% at 1 kHz, 1/3 rated power |
Input | MIC1 & MIC2: -46 dBV, 600 Ω, balanced, phoenix terminal (3.81 mm barrier spacing) TEL: -10 dBV, 10 kΩ, balanced, phoenix terminal (3.81 mm barrier spacing) AUX1 & AUX2: -10 dBV, 10 kΩ, unbalanced, RCA jack |
Output | Speaker out: Balanced (floating), M3 screw terminal, distance between barriers: 7.62 mm (0.3") High impedance: 40Ω (100 V), 20 Ω (70 V) Low impedance: 4 Ω (31.6 V) Auxiliary out: 0 dBV, 600 Ω, unbalanced, RCA jack |
Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kH |
Signal to Noise Ratio | ≥65 dB |
Power Source | 220V AC |
Phantom Power | DC +48V±3 (MIC 1&MIC2) |
Muting | MIC1, MIC2, and TEL feature a priority function that attenuates AUX1 and AUX2 input signals by 30 dB; Sensitivity for MIC1, MIC2, and TEL is adjustable; MIC1, MIC2, and TEL have equal priority. |
Finish | Panel: Aluminium alloy, black & white Enclosure: Metal plate, black |
Dimensions | 430 (W) × 88 (H) × 374 (D) mm (16.93" × 3.46" × 14.72") |
Weight | 13.51kg |
