DM86D 2x10W Bluetooth Intelligent Music Amplifier with Knob Control

Features

● Tempered glass with hardware oxidation frame, 4 touch light source buttons, 1 power wave switch, 1 volume adjustment knob
● Boot welcome: Support power-on to play the hotel's designated welcome message/music. (Music files are placed on: TF card/USB drive flash - folder name (Please name: SYSTEM) -WELCOME (welcome words/songs).
● Bluetooth function: Support mobile phones and other external Bluetooth device pairing to achieve audio playback.
● AUX: Support external audio input to the machine, enlarge the output.
● Memory card function: external TF card, support USB disk (maximum support 32G)
● Sound function: Support ordinary, rock, classical, jazz, pop and other sound functions.
● Audio format: MP3, WAV, WMA, FLAC, APE, DTS, AAC, AC3, OGG and other audio formats are supported.
● Power off memory function: memory of the state played before the last shutdown.
● Support power-on playback: Automatically play songs when powered on.
● Infrared remote control function: provide a variety of shortcut keys and humanized operation.

Contact now Leave message Download

Introduction
Specification

The DM86D (2×10W/8Ω) and DM86E(4×10W/8Ω) are Bluetooth intelligent music amplifiers with knob control and display, featuring a tempered glass panel, 4 touch buttons, a power switch, and a volume knob. They support Bluetooth streaming, AUX input, TF card and USB playback (up to 32G), with a customizable power-on welcome message. With smart audio control and exceptional playback quality, DM86D and DM86E are ideal for hotel, office and stylish commercial spaces, available in black, white, or gray type.

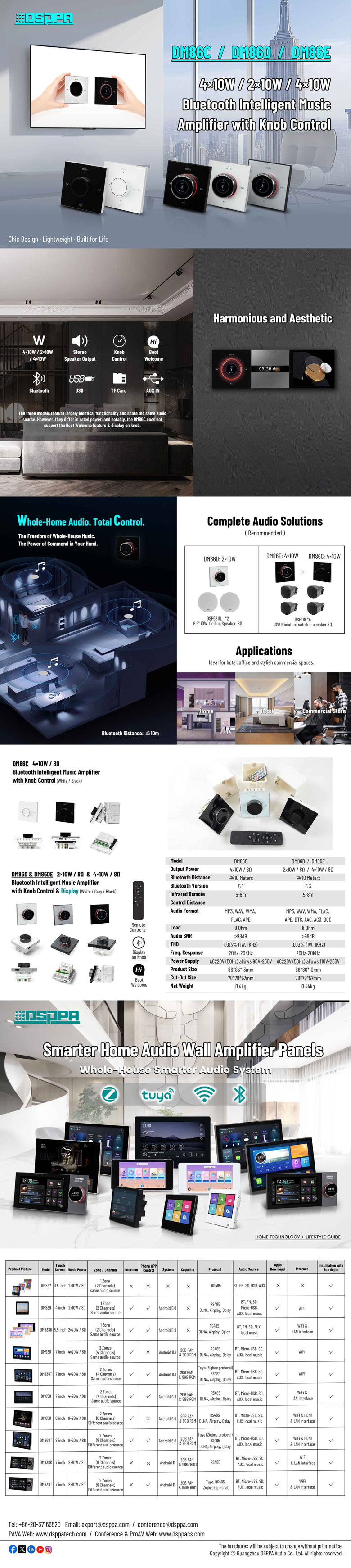

Brochure---DM86C-DM86D-DM86E-Bluetooth-Intelligent-Music-Amplifier-with-Knob-Control.jpg

Model	DM86D	DM86E
Output Power	2x10W/8Ω	4×10W/8Ω
Bluetooth Distance	≦10m
Bluetooth Version	5.3
Infrared Remote Control Distance	5-8m
Audio Format	MP3, WAV, WMA, FLAC, APE, DTS, AAC, AC3, OGG
Load	8 Ohm
Audio SNR	≥98dB
THD	0.03% (1W, 1KHz)
Frequency Response	20Hz-20kHz
Power Supply	AC220V (50 HZ) allows 110V-250V
Product Size	868610mm
Cut-Out Size	787857mm
Net Weight	0.44kg
