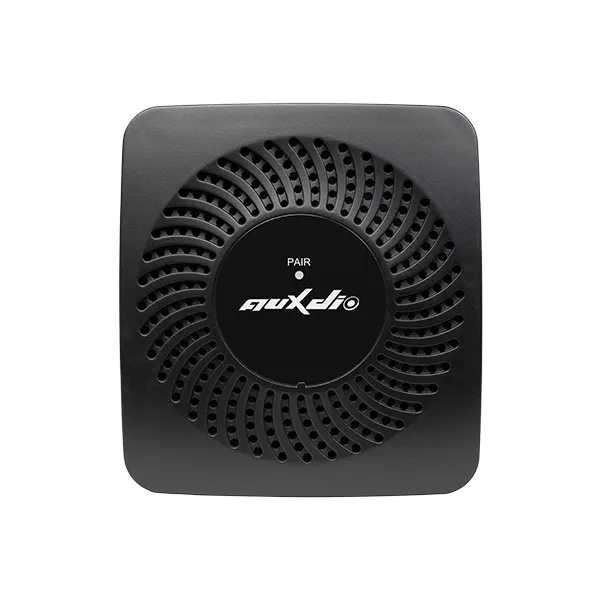

AM6505 Wireless Rear Surround Power Amplifier

Features

● Switching regulated power supply + digital amplifier technology.
● Automatic output limiting.
● Protection features including short-circuit, overload, over-temperature, DC protection, and power-on delay.
● Fully automated one-board construction with minimal wiring for enhanced stability.
● Wide-voltage, high-power flyback regulated power supply technology to solve unstable mains voltage issues.
● Ultra-low noise and low distortion design

Contact now Leave message

Introduction
Specification

The King Series 5.1-Channel Digital Audio Home Theater & Karaoke System delivers an ultra-immersive experience, allowing users to recreate the vibrant atmosphere of a KTV at home. Featuring a main unit, speakers, subwoofer, and microphone, this system enhances karaoke enjoyment with flexible audio adjustments that let you switch between different sound styles. It redefines home entertainment by bringing you the ultimate KTV experience right into your living space.

The Wireless Rear Surround Power Amplifier adopts advanced digital amplification and stable voltage regulation to ensure clean, distortion-free output. With wireless transmission and strong anti-interference capability, it delivers reliable rear-channel performance, creating a seamless and immersive surround sound experience without the hassle of wiring. Offered as an optional upgrade, it allows users to further enrich their system with truly wireless surround sound freedom.



Model	AM6505
Number of Channels	2
Stereo Output Power (8Ω)	50W*2 channels
Bridged Output	N/C
Frequency Response	20Hz - 20kHz (+0, -1dB)
Distortion	THD 0.015%
S/N Ratio	≥88dB
Channel Separation	>70dB@1kHz
Damping Factor	>300@1kHz and below
Input Sensitivity	-8.2dBFS 50W (IISI input)
Gain	25dB
Maximum Input Level	0dBFS
Power-On Delay	5 seconds
Indicator LED	Pairing indicator
Power Requirements	AC 200~240VAC 50Hz
Wireless Frequency	5.2G/5.8G
RF Modulation	FSK
Sampling Rate	48kHz 24-bit
Wireless Audio Latency	<17ms
Transmission Range	>20 meters
Antenna	Onboard antenna
Wireless Transmitter Operating Voltage	5V
Dimensions	108.3×100×36.3
Net Weight	0.3kg
Gross Weight	0.5kg
