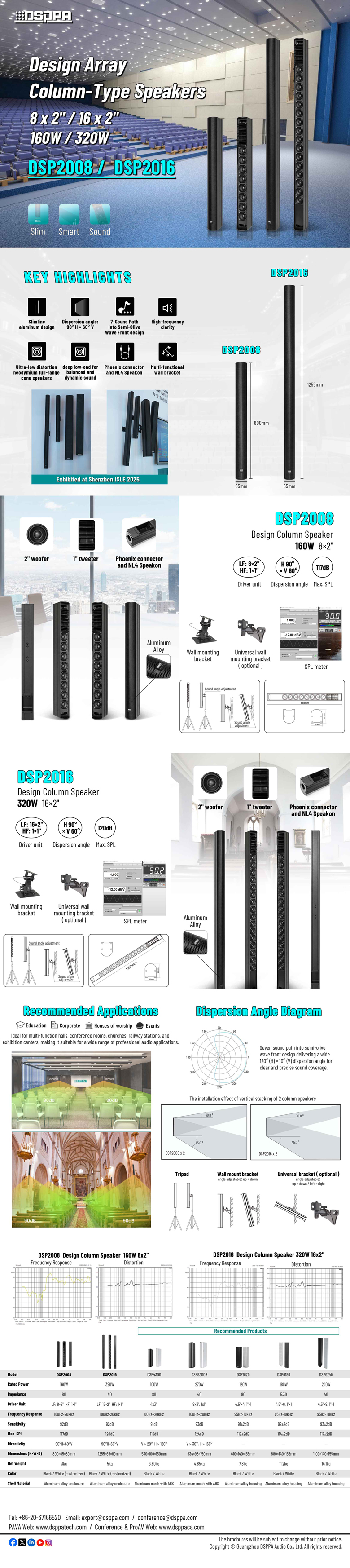

The DSP2008 Two-Way Array Column Speaker features an ultra-compact and lightweight design, with a high-strength aluminum alloy enclosure. It utilizes a Seven Sound Path into Semi-Olive Wave Front design, delivering a 120° (H) × 10° (V) dispersion angle for clear and precise sound coverage.
The DSP2008 integrates a 1×1" high-performance compression driver along with 8×2" high-efficiency, ultra-low distortion neodymium full-range cone speakers, ensuring exceptional audio clarity. Designed for versatility and ease of installation, the DSP2008 supports Phoenix connector and NL4 Speakon connection options.
With its slim and elegant design, precise control, and minimal distortion, the DSP2008 delivers high-quality highs and powerful lows, ensuring outstanding sound reinforcement for various applications which is ideal for multi-function halls, conference rooms, churches, railway stations, and exhibition centers.
Model | DSP2008 |
Driver Unit | LF: 8×2” HF: 1×1” |
Frequency Response | 180Hz-20kHz |
Rated Power | 160W |
Recommended Amplifier | 320W into 8Ω |
Sensitivity | 92dB |
Max. SPL | 117dB |
Nominal Impedance | 8Ω |
Directivity | 90°H×60°V |
Enclosure Material | Aluminum Alloy |
Enclosure Finish | Spray Painting |
Grille Process | Baked Steel Grille |
Connection Ports | 1×NL4 Four-Pin Socket + Euroblock Connector |
Attached Accessories | Installation Bracket |
Dimensions (H×W×D) | 800×65×89mm |
Net Weight | 3kg |
