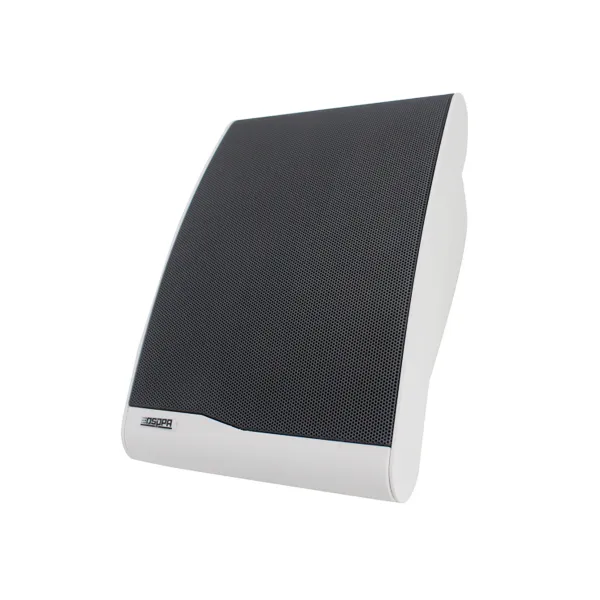

DSP9337 Emergency Intercom Speaker

Features

● Supports standard SIP protocol.
● Supports two-way intercom.
● Supports audible and visual alarm functions.
● Supports broadcasting, intercom, and remote voice paging.
● Supports intelligent keyword-based alarm detection with real-time alerts.
● Optional alarm notification methods: phone call, SMS, and IP call.
● Automatically records alarm events for traceability and analysis.
● Alarm keywords can be customized, up to 200 groups.
● Alarm keyword sensitivity and trigger count can be customized based on the on-site environment.
● Supports distributed mode, allowing standalone operation without a server.
● Built-in mounting holes for easy installation.
● Durable injection-molded engineering plastic housing; anti-deformation and anti-fading.
● Speaker suspension damping design for long lifespan, high sensitivity, and clear sound reproduction.
● High-sensitivity microphone with noise reduction algorithm for long-distance and noisy-environment voice pickup.
● Integrated speech recognition with voice-controlled dialing; flexible SIP target configuration via web interface for improved usability.
● Reserved IO interface for external call buttons, enabling functional expansion based on user needs.

Contact now Leave message Download

Introduction
Specification

The Emergency Intercom Speaker is equipped with a high-sensitivity microphone and noise reduction algorithms, enabling long-distance voice pickup and clear audio capture in noisy environments. It supports integrated speech recognition and voice-controlled dialing. In addition, SIP targets can be flexibly configured via a web interface, improving operational convenience. It also provides reserved IO ports for external call buttons, allowing users to expand functionality according to on-site requirements. When specific keyword voice input is detected, the system can automatically trigger an alarm. The device supports traditional network speaker functions, including SIP/VoIP protocol support, two-way intercom, and basic voice control capabilities, offering differentiated advantages over conventional IP speakers and enhancing market competitiveness.


Model		DSP9337
Acoustic System	Speaker Unit	4.5" × 1
	Sensitivity	92 ± 2 dB
	Maximum SPL	102 ± 3 dB
	Frequency Response	150 Hz – 6 kHz
	Rated Impedance	8 Ω
	Total Harmonic Distortion	≤ 7%
Amplifier	Frequency Response	80 Hz – 16 kHz ±3 dB
	Signal-to-Noise Ratio	≥ 76 dB (A-weighted)
	Distortion	≤ 1%
	Rated Power	10 W × 2
	Playback Sensitivity	-10 dB
Other Specifications	Network Interface	RJ45 (10/100M)
	Supported Protocols	DHCP, UDP, ICMP, IGMP (multicast)
	Power Input	DC24V
	Package Dimensions (L × W × H)	280 × 195 × 125 mm
	Product Dimensions (L × W × H)	274 × 183 × 113 mm
	Gross Weight	2 kg
	Net Weight	1.7 kg
