MC7112 10-Inch Nurse Station Sub Station

Features

● Auxiliary Nurse Station Management: Works as a secondary management terminal to assist the nurse station console in handling patient calls and ward communication.
● Multi-terminal Call Management: Supports communication with bedside terminals, ward door stations, ICU bedside terminals, and other medical terminals.
● Two-way Voice Intercom: Provides clear hands-free and handset voice communication for efficient interaction between medical staff and patients.
● 10-inch Touchscreen Operation: Equipped with a high-definition capacitive touchscreen for intuitive operation and quick access to system functions.
● Real-time Ward Information Display: Displays bed information, room status, call events, and unprocessed notifications, enabling efficient ward monitoring.
● Flexible Call Transfer and Delegation: Supports call transfer and hosting functions, allowing calls to be handled by designated nurse stations when required.
● Broadcast and Message Functions: Supports zone broadcasting, music playback, and offline message recording for enhanced communication efficiency.
● Network-based Communication: Adopts TCP/IP network communication for stable data transmission and convenient system expansion.
● Flexible Installation Options: Supports both wall-mounted and desktop installation to meet different deployment requirements.
● Reliable System Operation: Equipped with hardware watchdog protection to ensure stable operation in continuous medical environments.

Contact now Leave message

Introduction
Specification

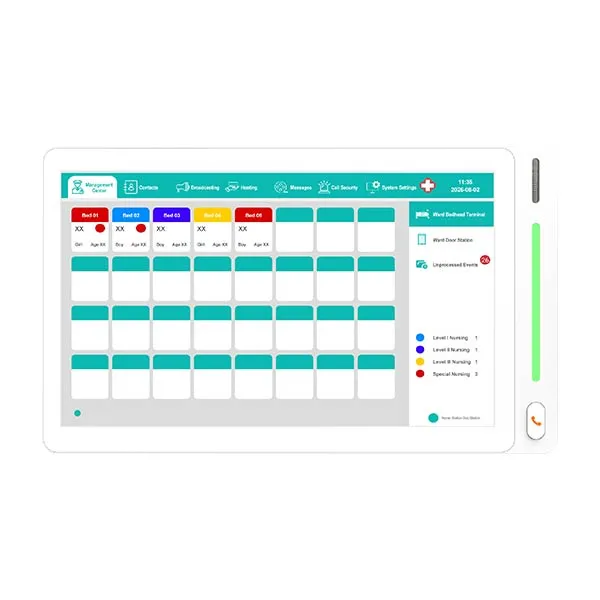

The MC7112 10-inch Nurse Station Sub Station is an auxiliary management terminal designed for intelligent nurse call systems. It works together with the nurse station management console to provide flexible communication and call handling support for different nursing areas and departments.

Featuring a 10-inch capacitive touchscreen and an intuitive user interface, the device enables medical staff to monitor ward information, receive patient calls, manage communication, and access various system functions. It supports two-way voice intercom with bedside terminals, ward door stations, and other medical terminals, helping improve response efficiency and nursing coordination.

Based on TCP/IP network communication technology, the MC7112 provides stable data transmission, flexible deployment, and seamless expansion for modern hospital environments.

Model	MC7112
Screen Size	10 inches
Camera (Optional)	800 W
Resolution	10": 1280 × 800 px
Main Chip	Quad-core Cortex™-A53, 1.8 GHz
Memory	1 GB (standard)
Storage	8 GB (standard)
Video Codec	H.264
Audio Codec	G.711 / G.722 / G.729
Network	10/100 Mbps adaptive
Communication Protocols	TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
Interfaces	Power Interface ×1, RJ45 ×1, Programming Switch ×1, Type-C ×1, Serial Port ×1, RS-485 ×1, Alarm Input ×2, Audio Output ×1, Audio Input ×1.
Other Features	RGB three-color indicator light with customizable colors; Supports IC card, Bluetooth, and WiFi (optional); Bluetooth: Version 4.0 or above; WiFi: Supports 2.4 GHz frequency band; External hardware watchdog to prevent system crashes
Touch Control	Multi-point capacitive touchscreen
Operating System	Android10
Working Voltage	DC 18–24V or standard PoE
Standby Power Consumption	10": < 5 W
Working Power Consumption	10": < 7 W
Operating Temperature	-40℃～+65℃
Installation Method	Wall-mounted / Desktop
Package Dimensions	270 × 190 × 33 mm
Product Dimensions	266 × 164 × 20 mm
Net Weight	0.65 kg (excluding the bracket)
Gross Weight	0.70 kg (excluding the bracket)
