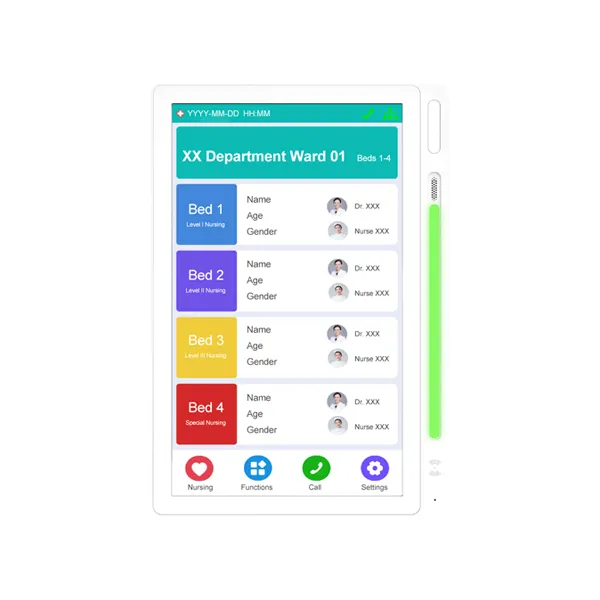

The MC7132 Ward Door Station is an intelligent information display and communication terminal installed at the entrance of hospital wards. It serves as an important component of the nurse call system, providing real-time ward information display, call communication, and status indication.
Equipped with a 10-inch or 15.6-inch high-definition touchscreen, the device clearly displays room numbers, patient information, nursing status, and other relevant data. Medical staff and visitors can easily view ward information and initiate communication with the nurse station when necessary.
The ward door station supports voice communication, emergency alarm input, and door light linkage, enabling efficient interaction between patients, medical staff, and the nurse station. With network-based communication technology and a modern industrial design, it ensures stable operation and seamless integration with the hospital’s intelligent nursing system.
Model | MC7131 | MC7132 |
Screen Size | 10" | 15.6" |
Resolution | 1280 × 800 px | 1920 × 1080 px |
Main Chip | Quad-core Cortex™-A53, 1.8 GHz | |
Memory | 1GB | |
Storage | 8GB | |
Video Formats | MP4, AVI, MKV, MOV | |
Audio Formats | MP3, AAC, WAV | |
Image Formats | JPEG, PNG | |
Network | 10/100 Mbps adaptive | |
Communication Protocols | TCP, UDP, RTP, ARP, IGMP, HTTP, SIP | |
Interfaces | Power interface ×1, RJ45 ×1, Flashing switch ×1, Type-C ×1, Serial port ×1, RS-485 interface ×1, Switch signal ×1 (optional), Alarm input ×2 | |
Other Features | RGB three-color indicator light (configurable to multiple colors); Supports IC card, Bluetooth, and WiFi (optional); Bluetooth: version 4.0 or above; WiFi: supports 2.4 GHz band; External hardware watchdog to prevent system crashes | |
Touch Control | Capacitive touchscreen, supporting 10-point touch and operation with gloves | |
Operating System | Android10 | |
Working Voltage | DC 18–24V or standard PoE | |
Standby Power Consumption | < 5 W | < 6 W |
Working Power Consumption | < 7 W | < 10 W |
Operating Temperature | -40℃～+65℃ | |
Installation Method | Wall-mounted installation | |
Package Dimensions | 270 × 190 × 33 mm | 430 × 270 × 45 mm |
Product Dimensions | 265 × 176 × 20.68 mm | 377 × 247 × 21 mm |
Net Weight | 0.7 kg | 1.85 kg |
Gross Weight | 0.8 kg | 1.95 kg |
