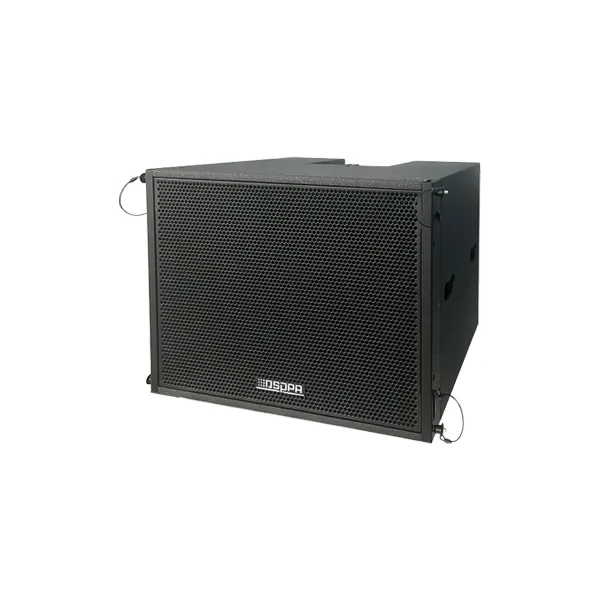

The PL206S is a dedicated subwoofer designed to extend the low-frequency performance of the PL Series system. Covering a range from 50 Hz to 300 Hz, it delivers deep and controlled bass response.
It incorporates a 15-inch long-excursion driver with 600 W power handling and a maximum SPL of 123 dB, producing strong, impactful low frequencies with excellent definition.
With its robust cabinet construction and easy system integration, the PL206S is well suited for auditoriums, multi-purpose venues, and other applications requiring enhanced bass reinforcement.
Model | PL206S |
System Configuration | 1×15" LF |
Frequency Response (±3dB) | 50Hz–300Hz |
Sensitivity | 95±2dB |
MAX. SPL | 123±2dB |
Input Impedance | 8Ω |
Rated Power | 600W |
Dimensions (H×W×D) | 446×570×500mm |
Weight | 32kg |
