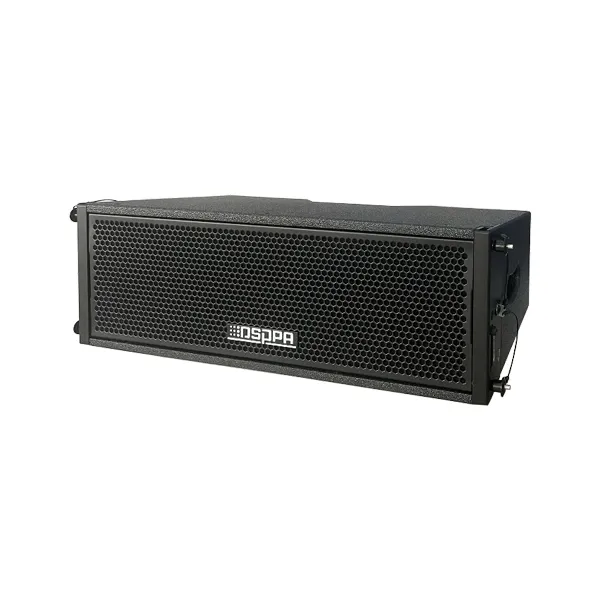

PL206 Passive Line Array Full-Range Speaker

Features

● Features two high-power 6.5-inch woofers and one 44 mm compression driver, integrated with a precision crossover network for optimized acoustic performance.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

Contact now Leave message Download

Introduction
Specification

The PL206 is engineered for applications requiring a more compact form factor while maintaining clarity and output performance. It operates within a frequency range of 150 Hz to 18 kHz, delivering precise and intelligible sound.

Equipped with dual 6.5-inch low-frequency drivers and a 1.75-inch high-frequency unit, it achieves a maximum SPL of 119 dB with a rated power of 300 W.

Optimized for indoor environments such as auditoriums and multi-purpose halls, the PL206 features a durable structure and adaptable mounting design, ensuring dependable operation across professional installations.

Model	PL206
System Configuration	2×6.5" LF, 1×1.75" HF
Frequency Response (±3dB)	150Hz–18kHz
Sensitivity	95±2dB
MAX. SPL	119±2dB
Input Impedance	8Ω
Rated Power	300W
Coverage (H×V)	120°×20°
Dimensions (H×W×D)	196×570×290mm
Net Weight	14.2kg
