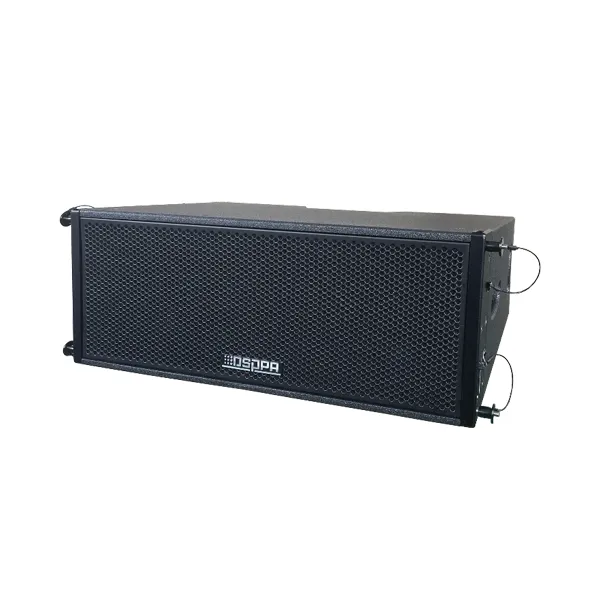

PL208 Passive Line Array Full-Range Speaker

Features

● Features two high-power 8-inch woofers and one 44 mm compression driver, integrated with a precision crossover network for optimized acoustic performance.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

Contact now Leave message Download

Introduction
Specification

The PL208 is a compact line array module designed to deliver high output with clear and well-balanced sound reproduction across a frequency range of 70 Hz to 18 kHz.

It features dual 8-inch low-frequency drivers combined with a 1.75-inch high-frequency unit, offering strong sensitivity and achieving a maximum SPL of 124 dB. With a rated power of 400 W, it ensures stable and efficient performance in professional audio applications.

Ideal for indoor environments such as auditoriums and multi-purpose halls, the PL208 adopts a robust enclosure and flexible installation design, providing reliable operation and easy system integration across various setups.

Model	PL208
System Configuration	2×8" LF, 1×1.75" HF
Frequency Response (±3dB)	70Hz–18kHz
Sensitivity	98±2dB
MAX. SPL	124±2dB
Input Impedance	8Ω
Rated Power	400W
Coverage (H×V)	120°×20°
Dimensions (H×W×D)	260×655×370mm
Net Weight	20.1kg
