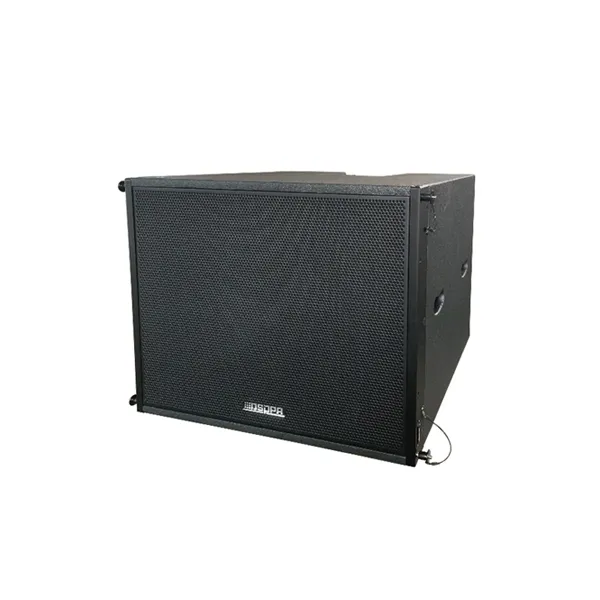

PL208S Passive Line Array Subwoofer

Features

● Features a high-power 18-inch long-excursion woofer, delivering fast, deep and powerful low-frequency performance with excellent punch and impact.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

  • Introduction
  • Specification

The PL208S is a dedicated subwoofer engineered to enhance line array systems with powerful low-frequency reinforcement, covering a range from 45 Hz to 250 Hz.

It is equipped with an 18-inch long-excursion woofer, delivering strong bass performance with a rated power of 800 W and a peak sound pressure level of 125 dB. The result is tight, dynamic low-end response with excellent clarity and impact.

Designed for professional sound reinforcement applications, the PL208S features a rugged enclosure and practical integration design, making it suitable for auditoriums, multi-purpose venues, and other spaces that require extended and consistent low-frequency coverage.

Model

PL208S

System Configuration

1×18" LF

Frequency Response (±3dB)

45Hz–250Hz

Sensitivity

96±2dB

MAX. SPL

125±2dB

Input Impedance

Rated Power

800W

Dimensions (H×W×D)

539×655×650mm

Weight

45kg
