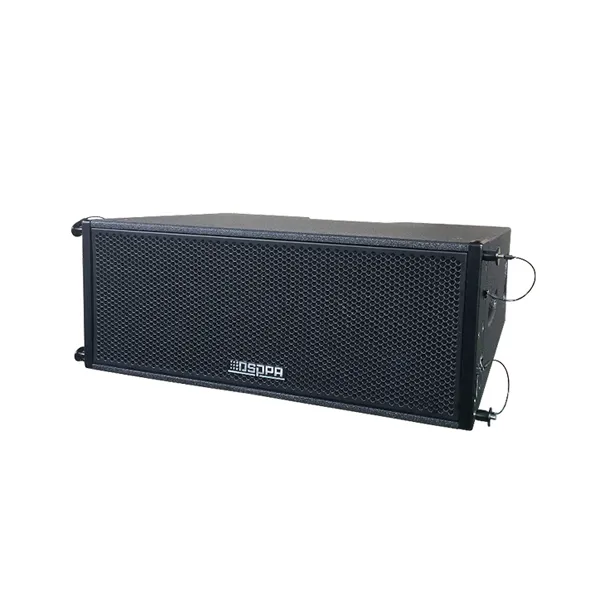

PL210 Passive Line Array Full-Range Speaker

Features

● Features two high-power 10-inch woofers and one 75 mm compression driver, integrated with a precision crossover network for optimized acoustic performance.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

  • Introduction
  • Specification

The PL210 is a high-performance line array module designed to deliver powerful sound reinforcement with excellent clarity and balance across a wide frequency range of 50 Hz to 18 kHz.

It is equipped with dual 10-inch low-frequency drivers and a 3-inch high-frequency unit, providing strong sensitivity and achieving a maximum SPL of 128 dB. With a rated power of 650 W, it ensures high-output performance with stability and precision.

Engineered for demanding indoor environments such as auditoriums and multi-purpose halls, the PL210 features a durable enclosure and flexible rigging design, enabling reliable deployment and efficient system integration in professional audio applications.

Model

PL210

System Configuration

2×10" LF, 1×3" HF

Frequency Response (±3dB)

50Hz–18kHz

Sensitivity

100±2dB

MAX. SPL

128±2dB

Input Impedance

Rated Power

650W

Coverage (H×V)

120°×10°

Dimensions (H×W×D)

303×740×437mm

Net Weight

31kg
