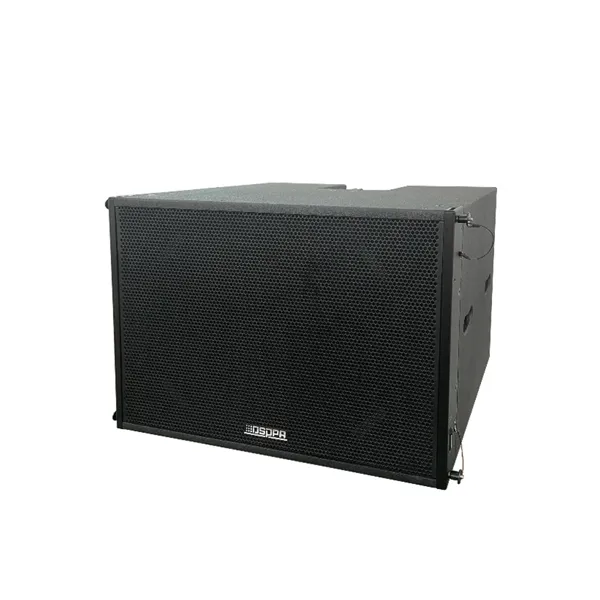

PL210S Passive Line Array Subwoofer

Features

● Features a high-power 18-inch long-excursion woofer, delivering fast, deep and powerful low-frequency performance with excellent punch and impact.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

  • Introduction
  • Specification

The PL210S is a powerful subwoofer designed to extend and enhance line array systems with deep and impactful low-frequency performance, covering a range from 43 Hz to 250 Hz.

It features an 18-inch long-excursion woofer, delivering high power handling with a rated output of 1000 W and reaching a maximum sound pressure level of 126 dB, ensuring tight, dynamic, and well-controlled bass reproduction.

Built for professional sound reinforcement applications, the PL210S incorporates a rugged enclosure and practical integration design, making it suitable for auditoriums, multi-purpose venues, and other installations that require extended low-frequency reinforcement with consistent performance.


Model

PL210S

System Configuration

1×18" LF

Frequency Response (±3dB)

43Hz–250Hz

Sensitivity

96±2dB

MAX. SPL

126±2dB

Input Impedance

Rated Power

1000W

Dimensions (H×W×D)

515×740×572mm

Weight

46kg


Relate Products

  • PL210 Passive Line Array Full-Range SpeakerPL210 Passive Line Array Full-Range SpeakerMarch 27, 2026The PL210 is a high-performance line array module designed to deliver powerful sound reinforcement with excellent clarity and balance across a wide frequency range of 50 Hz to 18 kHz.It is equipped wi...view
  • LA1408 Passive Line Array LoudspeakerLA1408 Passive Line Array LoudspeakerDecember 18, 2017LA1408 is an active array speaker in a mini line array system. With high power and high sound pressure level. The box is made of vessel special plywood. With high reliability. All metal accessories ar...view

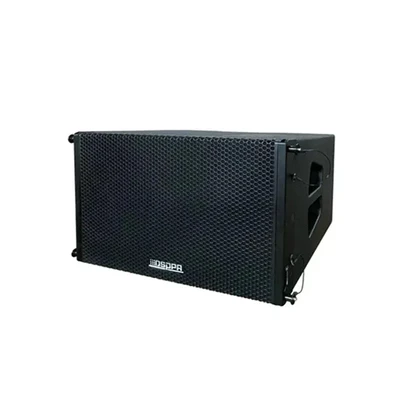

  • PL112 Passive Line Array Full-Range SpeakerPL112 Passive Line Array Full-Range SpeakerMarch 26, 2026The PL112 is a compact yet powerful line array speaker, delivering clear and balanced sound across a wide frequency range (58 Hz–18 kHz). With 1×12" low-frequency unit and 2×3" high-frequ...view
