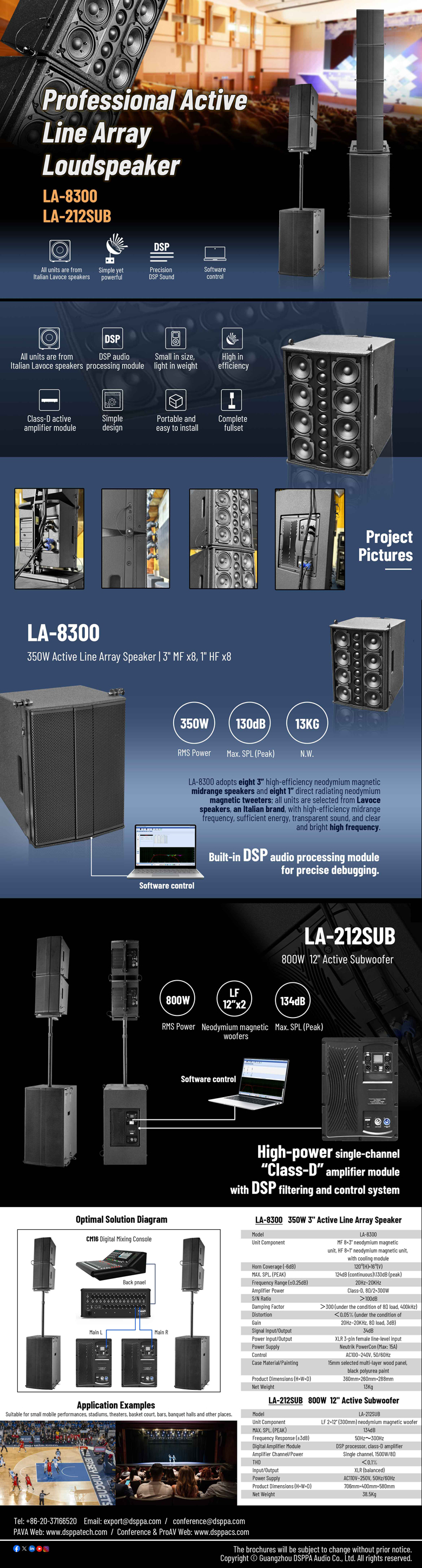

LA-8300 LA-212SUB Active Line Array Speaker System

Features

● Employs imported neodymium magnetic components.
● Features a built-in DSP audio processing module for accurate fine-tuning.
● Utilizes a high-power, single-channel class-D active amplifier module.
● Compact and lightweight, yet highly efficient.
● Easy to transport and install.
● Ideal for use in various settings such as Churches, Conference Rooms, Theaters, Theme Parks, Museums, and Hotels.

  • Introduction
  • Specification

LA-8300 adopts eight 3” high-efficiency neodymium magnetic midrange speakers and eight 1” direct radiating neodymium magnetic tweeters; all units are selected from Lavoco speakers, an Italian brand, with high-efficiency midrange frequency, sufficient energy, transparent sound, and clear and bright high frequency.
With compact structure, the high-strength speaker box is wear-resistant, using precise CNC machining combined with complex wedging process for good pressure resistance, sprayed with water-based environmental protection paint, beautiful and elegant. The speaker system consists of two 12” neodymium magnetic woofers, with full and powerful low-frequency sound and deep dive. It adopts high-power single-channel “Class-D” amplifier module with DSP filtering and control system, which is convenient for setting and retrieving parameters of different scenes, ensuring sound reproduction and stability, and adapting to the needs of different scenes. The amplifier module is provided with a cooling device, which facilitates cooling and ensures the stability of the amplifier. Equipped with professional hanging parts, it is easy to adjust the hanging angle of the speaker according to the actual needs for optimal results. It works with the LA-8300 small line array speaker.



Model

LA-8300

Unit Component

MF 8×3" neodymium magnetic unit, HF 8×1" neodymium magnetic unit, with cooling module

Horn Coverage (-6dB)

120°(H)×16°(V)

MAX. SPL. (PEAK)

124dB (continuous)\130dB (peak)

Frequency Range (±0.25dB)

20Hz~20KHz

Signal Processing

48kHz, 24-bit DSP processor, delay: input 120ms/output 20ms, filter, EQ, compressor, limiter

Amplifier Power

Class-D, 8Ω/2×300W

Speaker Power

350W

S/N Ratio

>100dB

Damping Factor

>300 (under the condition of 8Ω load, 400kHz)

Distortion

<0.05% (under the condition of 20Hz~20KHz, 8Ω load, 3dB)

Gain

34dB

Signal Input/Output

XLR 3-pin female line-level input

Power Input/Output

Neutrik PowerCon (Max: 15A)

Power Supply

AC100~240V, 50/60Hz

Control

On/Off switch

Protection

Input current limiter, short circuit protection, on/off mute, DC fault protection, power limiter

Case Material/Painting

15mm selected multi-layer wood panel, black polyurea paint

Product Dimensions (H×W×D)

360mm×260mm×288mm

Net Weight

13Kg


Model

LA-212SUB

Unit Component

LF 2×12" (300mm) neodymium magnetic woofer

MAX. SPL. (PEAK)

134dB

Frequency Response (±3dB)

50Hz~300Hz

Digital Amplifier Module

DSP processor, class-D amplifier

Amplifier Channel/Power

Single channel, 1500W/8Ω

Subwoofer Power

800W

THD

<0.1%

Input/Output

XLR (balanced)

Power Supply

AC110V~250V, 50Hz/60Hz

Product Dimensions (H×W×D)

706mm×400mm×580mm

Net Weight

38.5Kg
