DSP1280F Portable Waterproof Active Line Array Column PA Speaker

Features

● Modular array architecture allows versatile speaker stacking and flexible system scalability
● Engineered to deliver optimized acoustic coverage and highly uniform sound distribution across the venue.
● High-efficiency acoustic architecture generating 98 dB sensitivity and a high-impact maximum SPL of 130 dB.
● Integrated high-efficiency amplifier module capable of delivering up to 2,400W peak output power.
● Engineered for exceptional speech intelligibility and dynamic clarity, even in high-noise ambient settings.
● Finished with advanced polyurea finish achieving an IP66 ingress protection rating against heavy rainfall and water jets.
● Rugged weather-resistant chassis provides robust immunity to dust ingress, rain, and humidity.
● Industrial-grade build ensures rock-solid operational stability and reliable acoustics in harsh outdoor environments.

Contact now Leave message Download

Introduction
Specification

Built to thrive in rugged sound environments, this Professional Waterproof Active Line Array System pairs high-impact acoustic power with uncompromising weather resistance. Featuring an IP66-rated weather-sealed construction reinforced by a ultra-durable polyurea finish, it effortlessly withstands direct rain, moisture, and mechanical wear—making it an elite choice for outdoor stages, open-air festivals, humid auditoriums, and expansive conference centers. Delivering high-SPL headroom, precise throw, and crystal-clear voice and music clarity, the system fills massive auditoriums with uniform sound coverage regardless of weather conditions. It seamlessly merges professional-grade sound reinforcement with rugged, all-weather durability.

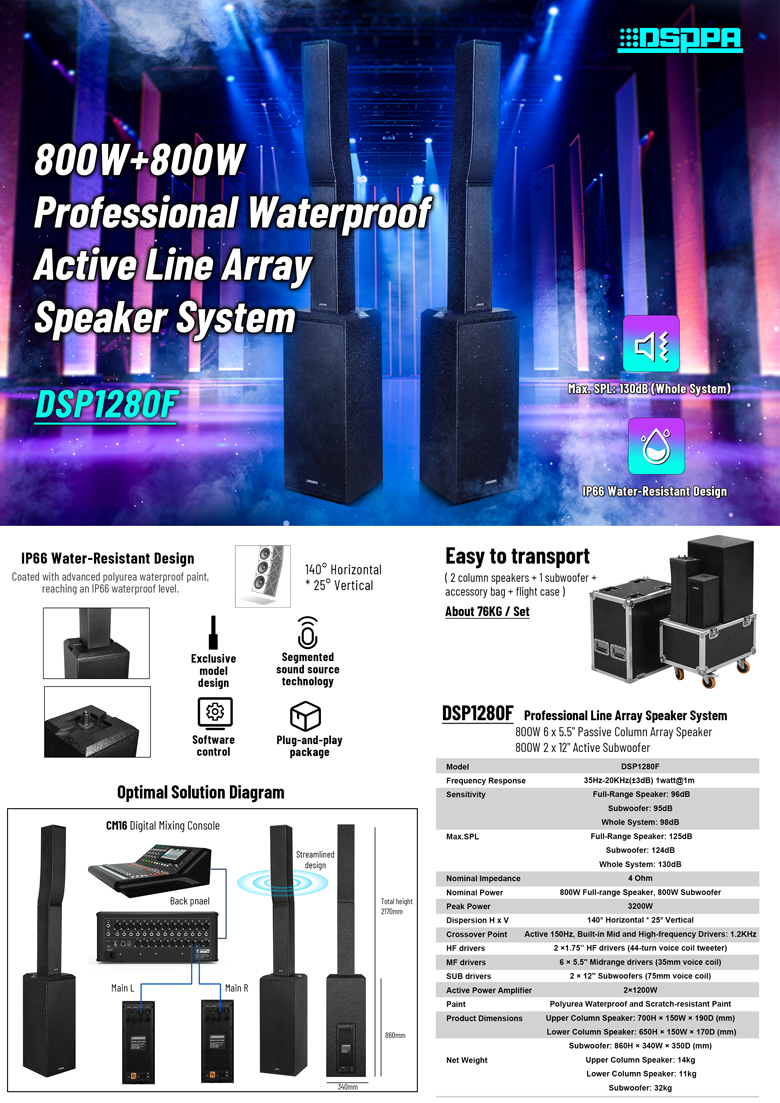

A4-Brochure---DSP1280F-800W+800W-Professional-Waterproof-Active-Line-Array-Speaker-System.jpg

Model	DSP1280F
Frequency Response	35Hz-20KHz(±3dB) 1watt@1m
Sensitivity	Full-Range Speaker: 96dB Subwoofer: 95dB Whole System: 98dB
Max.SPL	Full-Range Speaker: 125dB Subwoofer: 124dB Whole System: 130dB
Nominal Impedance	4 Ohm
Nominal Power	800W Full-range Speaker, 800W Subwoofer
Peak Power	3200W
Dispersion H x V	140° Horizontal * 25° Vertical
Crossover Point	Active 150Hz, Built-in Mid and High-frequency Drivers: 1.2KHz
HF drivers	2 ×1.75” HF drivers (44-turn voice coil tweeter)
MF drivers	6 × 5.5" Midrange drivers (35mm voice coil)
SUB drivers	2 × 12" Subwoofers (75mm voice coil)
Active Power Amplifier	2×1200W
Paint	Polyurea Waterproof and Scratch-resistant Paint
Product Dimensions	Upper Column Speaker: 700H × 150W × 190D (mm)
	Lower Column Speaker: 650H × 150W × 170D (mm)
	Subwoofer: 860H × 340W × 350D (mm)
Net Weight	Upper Column Speaker: 14kg
	Lower Column Speaker: 11kg
	Subwoofer: 32kg
