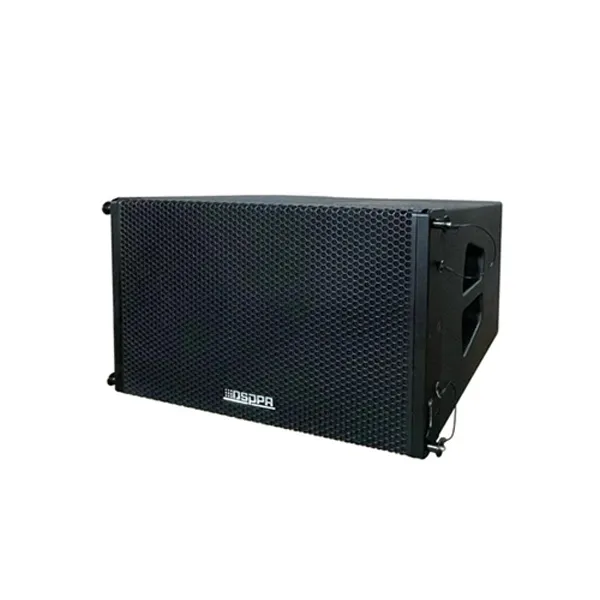

PL112 Passive Line Array Full-Range Speaker

Features

● Features one high-power 12-inch woofer and two 75 mm compression drivers, integrated with a precision crossover network for optimized acoustic performance.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor and outdoor venues such as gymnasiums, auditoriums, and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

  • Introduction
  • Specification

The PL112 is a compact line array loudspeaker designed to deliver strong output and consistent audio clarity across a broad frequency spectrum of 58 Hz to 18 kHz.

It features a 12-inch low-frequency driver paired with dual 3-inch high-frequency units, offering excellent sensitivity and reaching peak sound pressure levels up to 123 dB. With a rated power of 450 W, it performs reliably in a wide range of applications.

Suitable for both indoor and outdoor use—including sports venues, auditoriums, and multifunctional spaces—the system combines robust construction with a versatile mounting design, ensuring stable operation in demanding professional environments.

Model

PL112

System Configuration

1×12" LF, 2×3" HF

Frequency Response (±3dB)

58Hz–18,000Hz

Sensitivity

97±2dB

MAX. SPL

123±2dB

Input Impedance

Rated Power

450W

Coverage (H×V)

120°×5°–20° (depending on array configuration)

Dimensions (H×W×D)

357×580×440mm

Weight

32.3kg
