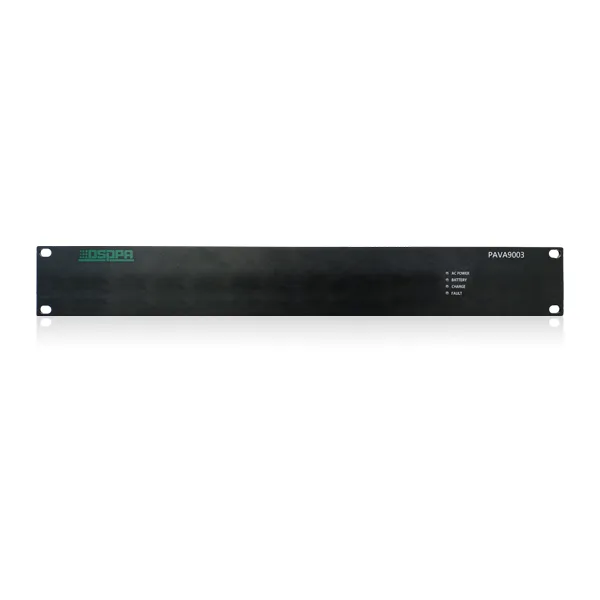

PAVA9003 Power Management Unit

Features

● Aluminum alloy front panel design, 1.5U rack-mounted structure.
● Provides dry contact outputs for fault status feedback to the PAVA9500 amplifier host.
● Provides dry contact outputs for AC power fault detection, battery fault detection, charging fault detection, and output fault detection.
● Provides backup DC24V power supply for PAVA9500 amplifier host, PAVA9500E expansion amplifier, PAVA9425E expansion amplifier, and other devices requiring DC24V backup power.
● Supports automatic switching between main power and backup power.
● Supports fault status monitoring via PC client.
● Three groups of 24V main outputs (max. 40A per group). Three groups of 24V auxiliary outputs (max. 5A per group).

Contact now Leave message Download

Introduction
Specification

The PAVA9003 Power Management Unit is designed for use with EN54-16 systems. It provides backup power supply for the PAVA9500 amplifier host, PAVA9500E expansion amplifier, and PAVA9425E expansion amplifier, ensuring seamless power switching in emergency situations.

Model		PAVA9003
Power Consumption	Idle Mode	≤10W
	Standby Mode	≤20W
	Operating Mode	≤300W
Package Dimensions (LWH)		560535130mm
Machine Dimensions (LWH)		48335566mm
Gross Weight		6kg
Net Weight		5.3kg
