MAG6551 MAG6552 MAG6553 D5811 PA True Diversity Wireless Series

Features

● Adopt UHF ultra-high frequency and true diversity reception to effectively avoid frequency loss and extend reception distance.
● Adopt DPLL digital phase-locked loop multi-channel frequency synthesis technology.
● Adopt infrared frequency pairing to easily and quickly synchronize the frequency of the transmitter and the receiver.
● With display screen to display frequency, channel, squelch, level and others.
● With balanced and unbalanced output ports to adapt to different connection needs.
● With AF output, using “XLR” sockets for separate output and mixed output.
● With built-in network audio acquisition module, which can realize wireless microphone audio signal network transmission.
● Can control the network host by the buttons on the wireless microphone to play background music, initiate emergency paging, etc.

  • Introduction
  • Specification

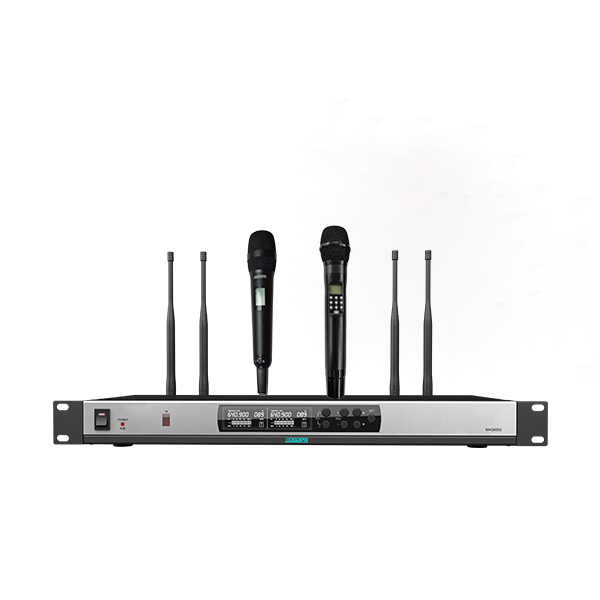

This is a professional true diversity wireless microphone system. MAG6552 is the wireless microphone receiver, which can be combined with MAG6553 and D5811 handheld wireless microphones to form a wireless microphone system.

System Index

Parameters

Frequency Range

632-661.25MHz

Number of Channels

100

Stepped Frequency

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±48KHz

Audio Frequency Response

125Hz-15KHz(±3dB)

SNR

>70dB

Distortion

≤1 %

Working Temperature

-10℃-+40℃

Effective Range

150-300m (in open environment)

Package Dimensions (L×W×H)

530×335×330mm

MAG6551 Gross Weight

5.3kg

Receiver

Wireless Interface

BNC/50Ω

Sensitivity

-100dBm

Spur Suppression

≥75 dB

Function Display Method

Display Screen

Working Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×100mm

Machine Dimensions

430×176×44mm

Gross Weight

3.9kg

Net Weight

2.3kg

Transmitter

Antenna Method

1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone.

Output Power

High power 14dBm; low power 6dBm

Spur Suppression

-60dB

Power Supply

2 AA 1.5V alkaline batteries

Endurance

More than 10 hours at 14dBm; more than 15 hours at 6dBm.

Function Display Method

Display Screen

Handheld MIC Dimensions

265×∅50mm

Remote MIC Dimensions

268×∅51.5mm

Handheld MIC Net Weight

0.45kg

Remote MIC Net Weight

0.35kg
