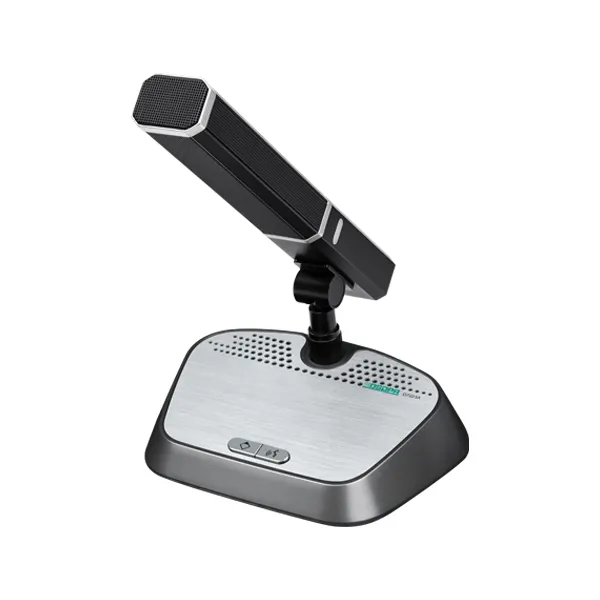

D7223A Desktop Chairman MIC

Features

● Compliant with IEC 60914 international standard.
● A conference speech mic integrating speaking and voting.
● Come with a 2m dedicated high-density cable and 1 RJ45 universal network plug.
● Electret cardioid directional capacitive pickup with two-color indicator light (red/green), red for speaking, and green for applying for speaking.
● With 315mm and 415mm in length optional for the microphone rod, available in black and silver colors.
● The microphone rod can be dismounted during the adjournment for maintenance and storage.
● With internal magnetic high-fidelity speaker, which will be automatically muted when the microphone is turned on to avoid howling.

  • Introduction
  • Specification

This product is a conference speech mic integrating speaking and voting. With 315mm and 415mm in length optional for the microphone rod, available in black and silver colors. D7223A is a desktop chairman microphone, while D7224A is a desktop delegate microphone.

Model

D7223A/D7224A

Structure Type

Desktop

Effective Frequency Range of Gain Limit (±3dB)



MIC A to MIC B

50Hz-14kHz

Host LINE to MIC

30Hz-18kHz

MIC to Host LINE

40Hz-16kHz

Speaker Power

1.5W

Static Power Consumption

<6W

Maximum Power Consumption

8W

SNR

>75dB

Crosstalk Attenuation

>80dB

Harmonic Distortion

<0.5%

Headset Output

9dBu, 8-32Ω, 3.5mm

Working Power

Host +48V power supply or +48V PoE switch

Unit Interface

Dante network interface

MIC



Microphone Type

Electret cardioid condenser

Sensitivity

-30dBV/pa

Input Impedance

2kΩ

Equivalent Noise

20dB(SPL)

MAX. SPL.

125dB(THD<3%)

Package Dimensions

485×280×120mm

Machine Dimensions (W×D×H)

175×133×46mm

Gross Weight

2.4kg

Net Weight

0.8kg
