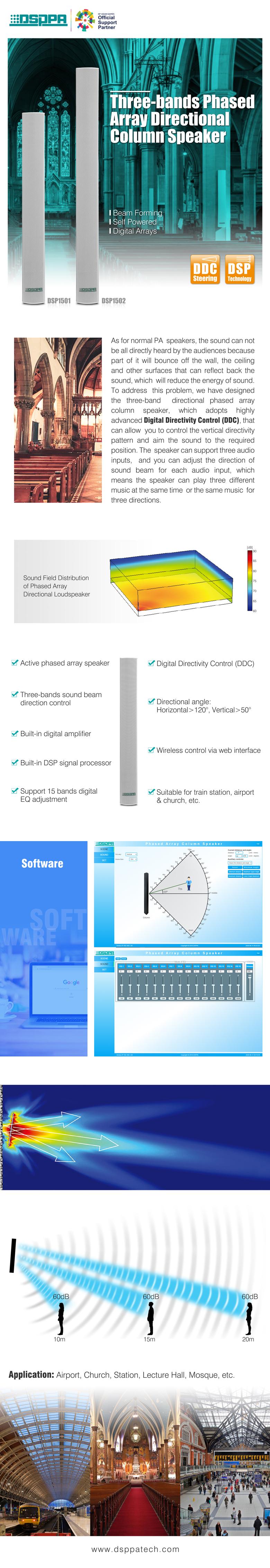

DSP1501 New Array Digitally Steerable Speakers

Features

● Directional adjustment in 3 directions.
● Active column with a built-in digital power amplifier.
● Compatible with 3 common line signal inputs and 1 fixed voltage amplifier power signal input (70V ±10V).
● Built-in volume, balanced processing adjustment.
● Wire/wireless beam sense of direction modulation control via a Web controller.

  • Introduction
  • Specification
  • Connection

The phased-array  steerable column speaker is with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible. By applying the electronic and digital signal processing (DSP) technologies, it can simulate the directivity from different shapes of sound columns, while the inherent performances of the sound column will not be affected, e.g. rated power, range of effective frequency response and max sound pressure level.

With DSP technologies, we can operate with the remote controller to change the directivity of speaker system at some extent. This linear array is suitable for loud speaking in a hall where the building acoustics is poor (especially long reverberation time). This phased array speaker is most suitable for the hardware (sound box, DSP processor) of the loudspeaker system in sports venues (where the volume is large, the building acoustics is poor, the reverberation time is long and the sound is muddy), so that it can be combined with special software to make the controllable sound cover useful area (auditoria, etc) correctly and prevent it from diffusion to useless area (e.g. ceiling, door or window). In this case, it can reduce the investment in acoustic decorations in venues and decrease the energy loss caused by loudspeaker system. This leads to reduced investment in both the acoustic decorations and sound system in the sports venue.

Model

DSP1501

Line Input Sensitivity (Optional)

300 (-10dB) / 500 (-06dB) / 1000 (00dB) mV

Constant Voltage Input Sensitivity

70 (±10) (-10dB) V

Max. SPL (1m)

105±2dB

Number of Speaker Units

10 PCS

Speaker Unit Size

4 Inch

Amplifier Rated Output Power

(Per Channel)

≥10 W

Amplifier Output Noise

(Per Channel)

<1 mV

Distortion

(Within the frequency range, under normal operating conditions)

<0.5 %

Graphic Equalizer Frequency Points

125/200/315/500/800/1.25k/1.6k/2k/2.5k/3.15k/4k/5k/6.3k/8k/10K (15 bands in total) Hz

Equalizer Adjustment Amplitude

±10 dB

Frequency Response:

80-18k (±3dB) Hz

Horizontal Radiation Angle

>120 Degree

Vertical Radiation Angle

<50 Degree

The Main Beam Adjustable Range

(Vertical)

±45 Degree

Grid Adaptation Capacity

AC100-270V /50-60Hz

Package dimensions: (L × W ×H)

1505×265×280 mm

Dimensions (L × W ×H)

1365×132.5×145.5 mm

Gross weight

20 kg

Net Weight

16.5 kg


DSP1501 New Array Digitally Steerable Speakers

Relate Products

  • DSP3036B 350W Waterproof Digital Column SpeakerDSP3036B 350W Waterproof Digital Column SpeakerNovember 30, 2016Waterproof speaker unit and overall stamping aluminum housing design, suitable for outdoor useWith DSP-3000 regulator for easy configurationCompact size, easy installation and high elector acoustic se...view
  • DSP1500S Professional Low Frequency SpeakerDSP1500S Professional Low Frequency SpeakerApril 18, 2022DSP1500S is a professional low frequency speaker with adjustable input gain and cut-off frequency and positive and negative phase. It can effectively compensate the low-frequency components of the sou...view

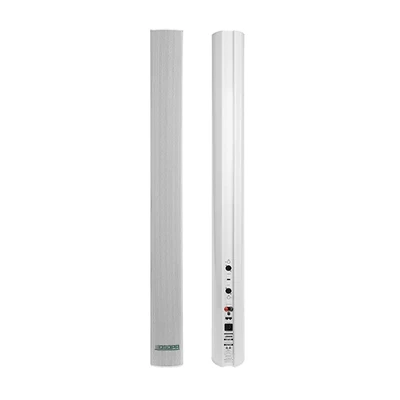

  • DSP1502 New 150W Array Digitally Steerable SpeakersDSP1502 New 150W Array Digitally Steerable SpeakersNovember 30, 2016The phased-array column speaker is with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and paralle...view
