MAG1325II Dual Channel Power Amplifier

Features

● 2 separate amplifier into one chassis
● Rack mount amplifier in 2U height
● Rated power from 250W per channel
● Individual volume and tone control for each channel
● 70V, 100V, 200V outputs for each channel switchable
● Reliable protection from overheat, overload, clip & short circuit
● Exchange control signal and status information with MAG host
● Built-in voice message or siren modules for priority input
● Excellent device of radiator cooling fan that ensures working effectively

  • Introduction
  • Specification
  • Connection

The dual 2 channel amplifier is designed for commercial and industrial public address applications. With two separate amplifier in a single chassis and rated power is 250W. The amplifier is design of rack mount type and its 2U height.

The Amplifier can be exchanged control signal and status information with MAG host.

Both balanced and unbalanced line inputs are available for each channel. 70V, 100V and 200V outputs for each channel are convenient when installation and can be matched with different speakers. Individual volume and tone control function for each channel are ensured. Complete protection from over heat, over load, clip & short circuit. With indications for power, signal, clip, protection and Temp.

Model

MAG1325II

Rated power

250 W

Rated output voltage

70V/100V/200V

Inputsensitivity

0dBu

S/N

≥80dB

Regulation ratio

≤3dB

Frequency response

70Hz ~16kHz        (±3dB)

Tone

100Hz (±10dB); 10kHz (±10dB)

Power Consumption

400 W

Powerrequirement

AC220~240V/50~60Hz

Unit Size (mm)

(L×W×H)88´483´443

Netweight

22 Kg

MAG1325II Dual Channel Power Amplifier

Relate Products

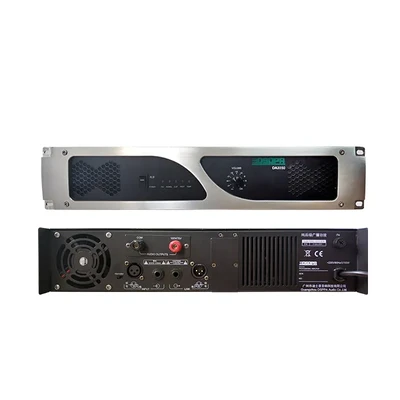

  • DA3750 1 channel Class-D AmplifierDA3750 1 channel Class-D AmplifierJune 11, 2019DA3750 is one of the series of digital power amplifier with newly designed appearance and high powers for selection.view
