MAG8362D Smart UV-C Disinfection Control Terminal

Features

● Dual-action UV + ozone disinfection synergy delivers maximum pathogen destruction and 360-degree surface sterilization.
● Pure physical disinfection process eliminating chemical additives, toxic residues, or secondary pollution.
● Versatile multi-scenario deployment paired with intuitive, single-touch operational controls.
● Broad-spectrum UVC technology neutralizes airborne bacteria and viruses, using targeted radiation in recirculated air channels to lower pathogen load.
● Ambient-temperature UV decontamination safely sterilizes heat-sensitive items—including electronics, medical tools, personal effects, and tableware—without thermal deformation.
● Inline fluid disinfection module irradiates fluid flow to eliminate waterborne pathogens, bacteria, and viral strains while preventing algae buildup.
● Auto-sensing 10/100M Ethernet interface with DHCP/Static IP support for easy LAN integration and local control.
● Programmable disinfection timer enables automated, hands-free operation upon cycle activation.

Contact now Leave message

Introduction
Specification

Utilizing chemical-free physical light, both the UV Disinfection Lamp and the UV Disinfection Control Terminal deliver targeted antimicrobial performance. The traditional UV Lamp (typically low-pressure mercury) emits dual wavelengths: 254 nm UVC to directly disrupt microbial DNA/RNA structures, and 185 nm UV to generate ozone for secondary volumetric sterilization. Conversely, the Control Terminal (such as a UVC-LED module) operates exclusively at the 254 nm wavelength for high-efficiency, ozone-free disinfection. Built for smart automation, the master system supports scheduled countdowns and touchless operations to maximize energy efficiency. When operated within enclosed air-recirculation setups, the technology ensures safe human-device coexistence, making it an ideal choice for continuous indoor air sanitation in heavy-footprint spaces like hospitals and corporate towers.

Model	MAG8362D
Output Power	30 W
Voltage/Frequency	AC 220 V / 50 Hz
Package Dimensions	640 × 360 × 60 mm
Product Dimensions (L × W × H)	600 × 300 × 30 mm
Gross Weight	1.2 kg
Net Weight	1 kg

PREV: MAG8362 MAG8362D UV Disinfection Control Terminal & UV Disinfection Lamp

NEXT: MAG8563 MAG8563C Negative Ion Air Purification Speaker & Negative Ion Air Purification Speaker (Expansion Speaker)

Relate Products

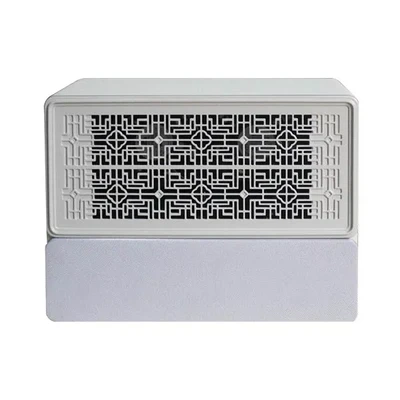

MAG8361 MAG8361C Negative Ion Air Purification Terminal & Negative Ion Air Purification Terminal (Expansion Unit)August 19, 2026The negative ion air purification terminal adopts high-voltage power supply technology to generate highly active negative oxygen ions. With a built-in fan, the terminal actively releases negative ions...view

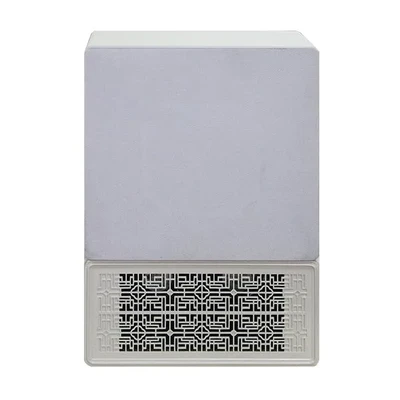

MAG8563 MAG8563C Negative Ion Air Purification Speaker & Negative Ion Air Purification Speaker (Expansion Speaker)August 19, 2026The Negative Ion Air Purification Speaker integrates an independent negative ion generator into the enclosure of a conventional Bluetooth/wired speaker. While playing music, it generates negative ions...view
